Home/Product Catalog/Discrete Semiconductor Products / Diodes - Rectifiers - Single/ SCS210AJTLL

SCS210AJTLL

SCS210AJTLL

Part NumberSCS210AJTLL

ManufacturerRohm Semiconductor

DescriptionDIODE SCHOTTKY 650V 10A TO263AB

DatasheetSCS210AJ

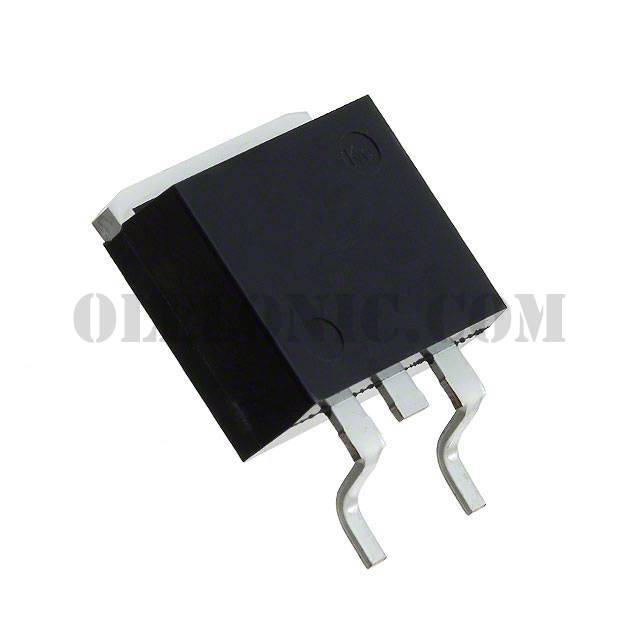

Package / CaseTO-263-3, D²Pak (2 Leads + Tab), TO-263AB

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Silicon Carbide Schottky 650V 10A (DC) Surface Mount TO-263AB

To learn about the specification of SCS210AJTLL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SCS210AJTLL with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SCS210AJTLL.
We are offering SCS210AJTLL for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SCS210AJTLL - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	SCS210AJ
Standard Package	1000
Manufacturer	Rohm Semiconductor
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max)	650V
Current - Average Rectified (Io)	10A (DC)
Voltage - Forward (Vf) (Max) @ If	1.55V @ 10A
Speed	No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr)	0ns
Current - Reverse Leakage @ Vr	200µA @ 600V
Capacitance @ Vr, F	365pF @ 1V, 1MHz
Mounting Type	Surface Mount
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package	TO-263AB
Operating Temperature - Junction	175°C (Max)
Base Part Number	SCS210
