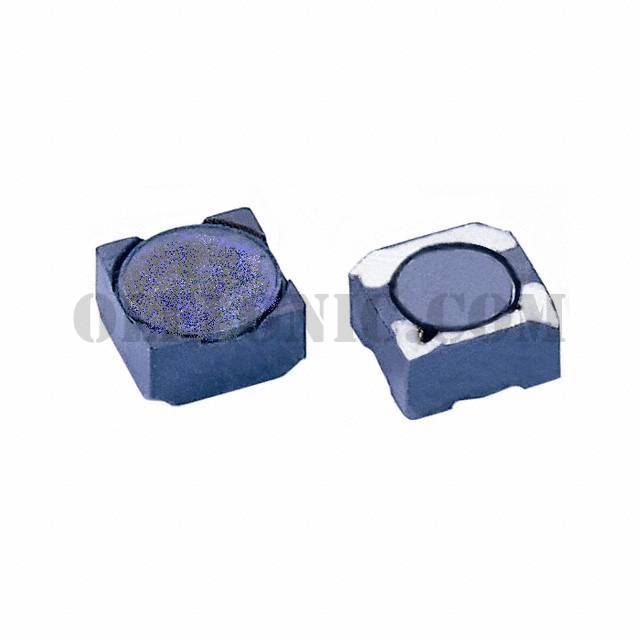

SCMS5D25-101

Part NumberSCMS5D25-101

ManufacturerSignal Transformer

DescriptionFIXED IND 100UH 580MA 820 MOHM

DatasheetSCMS5D25 Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description100µH Shielded Inductor 580mA 820mOhm Max Nonstandard

To learn about the specification of SCMS5D25-101, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SCMS5D25-101 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SCMS5D25-101.
We are offering SCMS5D25-101 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SCMS5D25-101 - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

SCMS5D25 Series

Standard Package

2000

Manufacturer

Signal Transformer

Series

SCMS5D25

Packaging

Tape & Reel (TR)

Part Status

Active

Type

Material - Core

Inductance

100µH

Tolerance

±20%

Current Rating (Amps)

580mA

Current - Saturation

350mA

Shielding

Shielded

DC Resistance (DCR)

820mOhm Max

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-40°C ~ 125°C

Inductance Frequency - Test

100kHz

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

Size / Dimension

0.205" L x 0.205" W (5.20mm x 5.20mm)

Height - Seated (Max)

0.110" (2.80mm)
