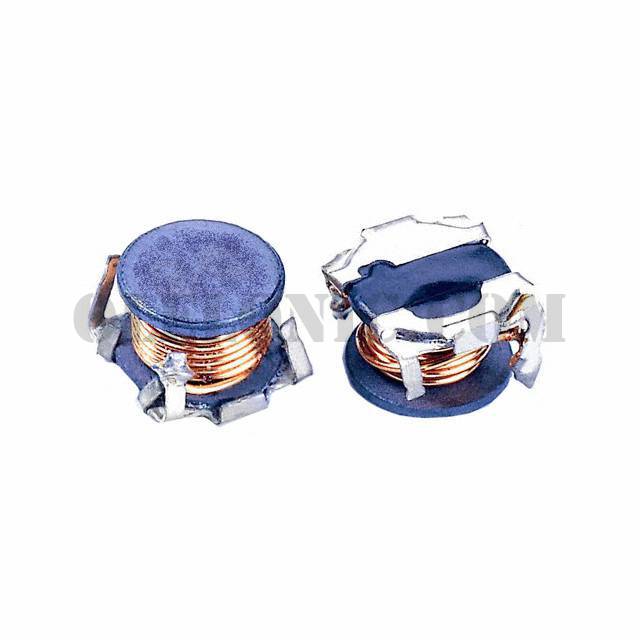

SCH74-100

Part NumberSCH74-100

ManufacturerSignal Transformer

DescriptionFIXED IND 10UH 3.2A 56 MOHM SMD

DatasheetSCH74 Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description10µH Unshielded Wirewound Inductor 3.2A 56mOhm Max Nonstandard

To learn about the specification of SCH74-100, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SCH74-100 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SCH74-100.
We are offering SCH74-100 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SCH74-100 - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

SCH74 Series

Standard Package

1000

Manufacturer

Signal Transformer

Series

SCH74

Packaging

Tape & Reel (TR)

Part Status

Active

Type

Wirewound

Material - Core

Inductance

10µH

Tolerance

±15%

Current Rating (Amps)

3.2A

Current - Saturation

2.75A

Shielding

Unshielded

DC Resistance (DCR)

56mOhm Max

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-40°C ~ 125°C

Inductance Frequency - Test

1kHz

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

Size / Dimension

0.315" L x 0.287" W (8.00mm x 7.30mm)

Height - Seated (Max)

0.205" (5.20mm)
