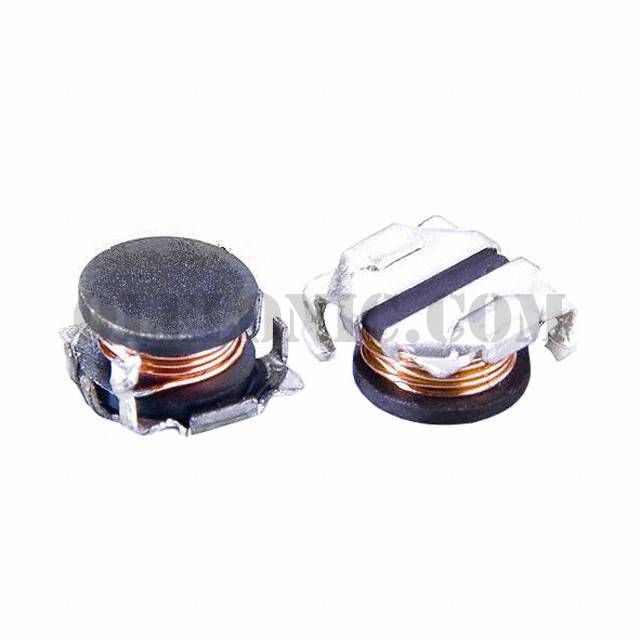

SCH53-2R2

Part NumberSCH53-2R2

ManufacturerSignal Transformer

DescriptionFIXED IND 2.2UH 2.6A 66 MOHM SMD

DatasheetSCH53 Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description2.2µH Unshielded Wirewound Inductor 2.6A 66mOhm Max Nonstandard

To learn about the specification of SCH53-2R2, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SCH53-2R2 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SCH53-2R2.
We are offering SCH53-2R2 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SCH53-2R2 - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

SCH53 Series

Standard Package

2000

Manufacturer

Signal Transformer

Series

SCH53

Packaging

Tape & Reel (TR)

Part Status

Active

Type

Wirewound

Material - Core

Inductance

2.2µH

Tolerance

±20%

Current Rating (Amps)

2.6A

Current - Saturation

2.03A

Shielding

Unshielded

DC Resistance (DCR)

66mOhm Max

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-40°C ~ 125°C

Inductance Frequency - Test

7.96kHz

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

Size / Dimension

0.236" L x 0.213" W (6.00mm x 5.40mm)

Height - Seated (Max)

0.126" (3.20mm)
