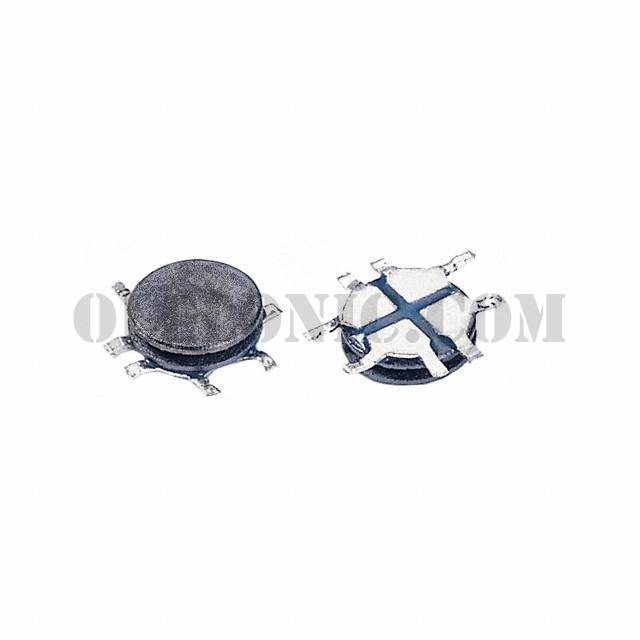

SCH4312-3R3

Part NumberSCH4312-3R3

ManufacturerSignal Transformer

DescriptionFIXED IND 3.3UH 1.2A 145 MOHM

DatasheetSCH4312 Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description3.3µH Unshielded Inductor 1.2A 145mOhm Max Nonstandard

To learn about the specification of SCH4312-3R3, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SCH4312-3R3 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SCH4312-3R3.
We are offering SCH4312-3R3 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SCH4312-3R3 - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

SCH4312 Series

Standard Package

3000

Manufacturer

Signal Transformer

Series

SCH4312

Packaging

Tape & Reel (TR)

Part Status

Active

Type

Material - Core

Inductance

3.3µH

Tolerance

±20%

Current Rating (Amps)

1.2A

Current - Saturation

Shielding

Unshielded

DC Resistance (DCR)

145mOhm Max

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-40°C ~ 125°C

Inductance Frequency - Test

100kHz

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

Size / Dimension

0.248" L x 0.220" W (6.30mm x 5.60mm)

Height - Seated (Max)

0.051" (1.30mm)
