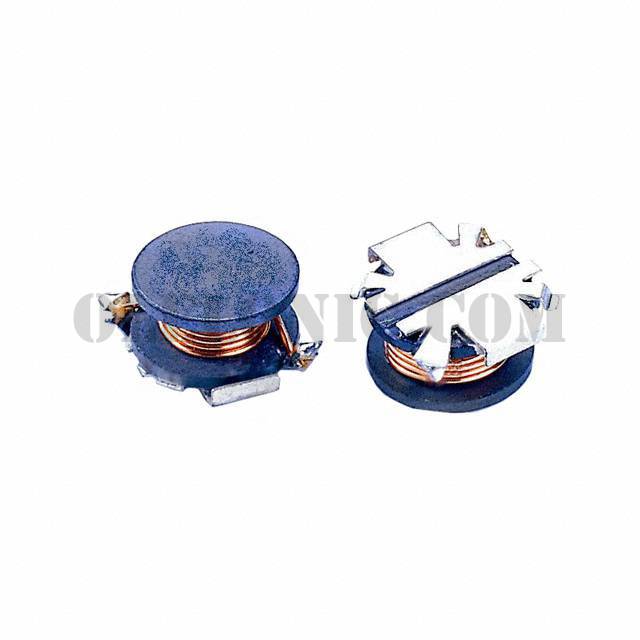

SCH114-2R5

Part NumberSCH114-2R5

ManufacturerSignal Transformer

DescriptionFIXED IND 2.5UH 5.1A 30 MOHM SMD

DatasheetSCH114 Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description2.5µH Unshielded Wirewound Inductor 5.1A 30mOhm Max Nonstandard

To learn about the specification of SCH114-2R5, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SCH114-2R5 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SCH114-2R5.
We are offering SCH114-2R5 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SCH114-2R5 - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

SCH114 Series

Standard Package

500

Manufacturer

Signal Transformer

Series

SCH114

Packaging

Tape & Reel (TR)

Part Status

Active

Type

Wirewound

Material - Core

Inductance

2.5µH

Tolerance

±30%

Current Rating (Amps)

5.1A

Current - Saturation

6.5A

Shielding

Unshielded

DC Resistance (DCR)

30mOhm Max

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-40°C ~ 125°C

Inductance Frequency - Test

100kHz

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

Size / Dimension

0.409" L x 0.409" W (10.40mm x 10.40mm)

Height - Seated (Max)

0.193" (4.90mm)
