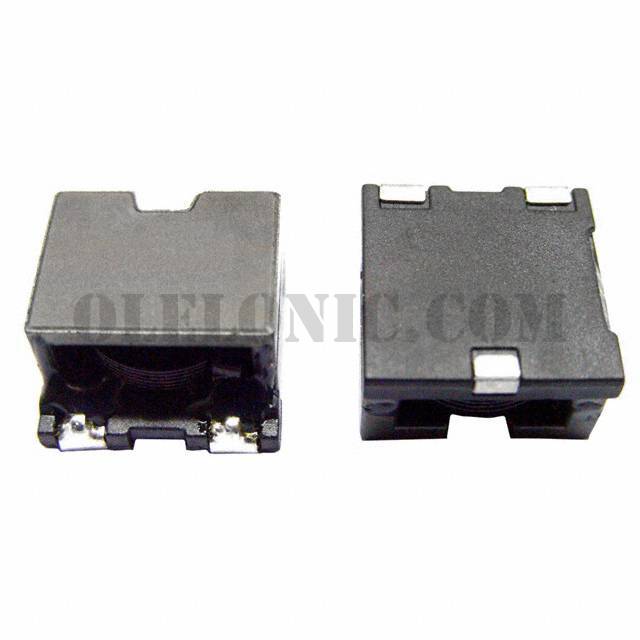

SCEP147L-R50

Part NumberSCEP147L-R50

ManufacturerSignal Transformer

DescriptionFIXED IND 500NH 24A 2.1 MOHM SMD

DatasheetSCEP147L Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description500nH Shielded Inductor 24A 2.1mOhm Max Nonstandard

To learn about the specification of SCEP147L-R50, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SCEP147L-R50 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SCEP147L-R50.
We are offering SCEP147L-R50 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SCEP147L-R50 - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

SCEP147L Series

Standard Package

300

Manufacturer

Signal Transformer

Series

SCEP147L

Packaging

Tape & Reel (TR)

Part Status

Active

Type

Material - Core

Inductance

500nH

Tolerance

±30%

Current Rating (Amps)

24A

Current - Saturation

39.6A

Shielding

Shielded

DC Resistance (DCR)

2.1mOhm Max

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-40°C ~ 125°C

Inductance Frequency - Test

100kHz

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

Size / Dimension

0.591" L x 0.587" W (15.00mm x 14.90mm)

Height - Seated (Max)

0.319" (8.10mm)
