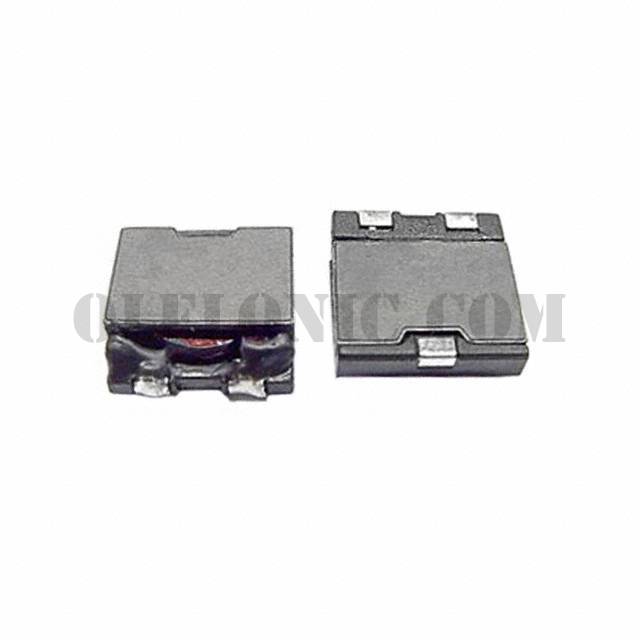

SCEP134H-R30

Part NumberSCEP134H-R30

ManufacturerSignal Transformer

DescriptionFIXED IND 300NH 18A 2.5 MOHM SMD

DatasheetSCEP134H Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description300nH Shielded Inductor 18A 2.5mOhm Max Nonstandard

To learn about the specification of SCEP134H-R30, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SCEP134H-R30 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SCEP134H-R30.
We are offering SCEP134H-R30 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SCEP134H-R30 - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

SCEP134H Series

Standard Package

500

Manufacturer

Signal Transformer

Series

SCEP134H

Packaging

Tape & Reel (TR)

Part Status

Active

Type

Material - Core

Inductance

300nH

Tolerance

±30%

Current Rating (Amps)

18A

Current - Saturation

35A

Shielding

Shielded

DC Resistance (DCR)

2.5mOhm Max

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-40°C ~ 125°C

Inductance Frequency - Test

100kHz

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

Size / Dimension

0.547" L x 0.547" W (13.90mm x 13.90mm)

Height - Seated (Max)

0.193" (4.90mm)
