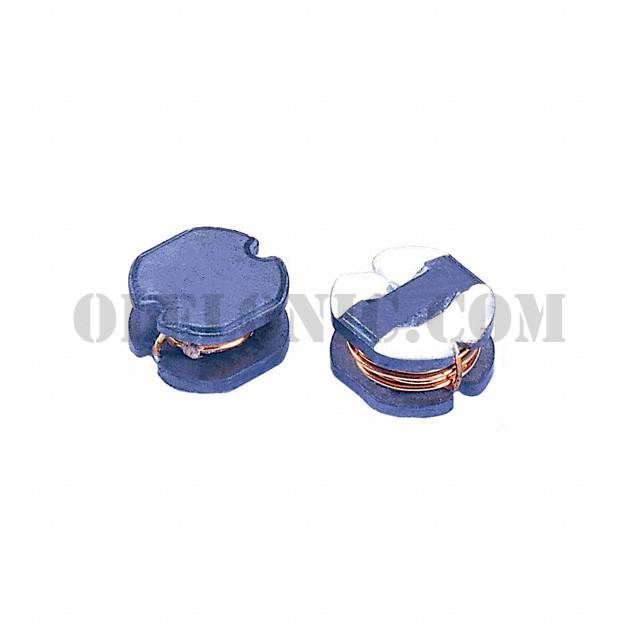

SC53-680

Part NumberSC53-680

ManufacturerSignal Transformer

DescriptionFIXED IND 68UH 700MA 590 MOHM

DatasheetSC53 Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description68µH Unshielded Wirewound Inductor 700mA 590mOhm Max Nonstandard

To learn about the specification of SC53-680, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SC53-680 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SC53-680.
We are offering SC53-680 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SC53-680 - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

SC53 Series

Standard Package

1500

Manufacturer

Signal Transformer

Series

SC53

Packaging

Tape & Reel (TR)

Part Status

Active

Type

Wirewound

Material - Core

Inductance

68µH

Tolerance

±20%

Current Rating (Amps)

700mA

Current - Saturation

530mA

Shielding

Unshielded

DC Resistance (DCR)

590mOhm Max

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-40°C ~ 125°C

Inductance Frequency - Test

2.52MHz

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

Size / Dimension

0.240" L x 0.217" W (6.10mm x 5.50mm)

Height - Seated (Max)

0.130" (3.30mm)
