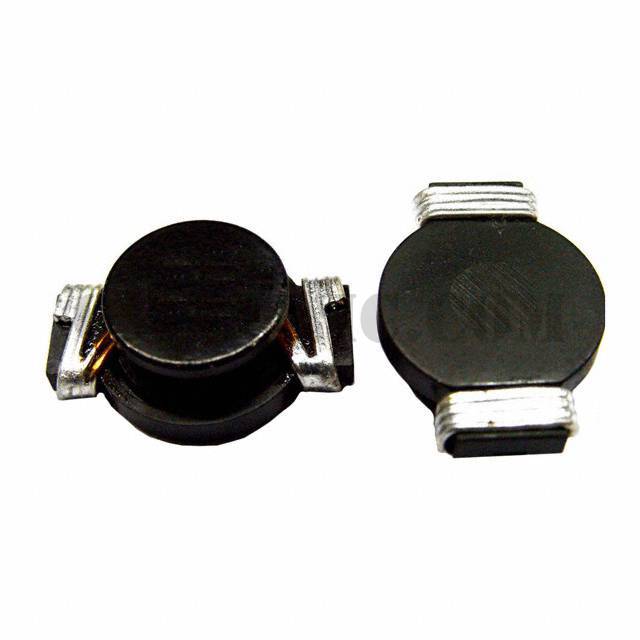

SC5022FH-3R3

Part NumberSC5022FH-3R3

ManufacturerSignal Transformer

DescriptionFIXED IND 3.3UH 9.4A 9 MOHM SMD

DatasheetSC5022FH Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description3.3µH Unshielded Wirewound Inductor 9.4A 9mOhm Max Nonstandard

To learn about the specification of SC5022FH-3R3, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SC5022FH-3R3 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SC5022FH-3R3.
We are offering SC5022FH-3R3 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SC5022FH-3R3 - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

SC5022FH Series

Standard Package

250

Manufacturer

Signal Transformer

Series

SC5022FH

Packaging

Tape & Reel (TR)

Part Status

Active

Type

Wirewound

Material - Core

Inductance

3.3µH

Tolerance

±30%

Current Rating (Amps)

9.4A

Current - Saturation

17A

Shielding

Unshielded

DC Resistance (DCR)

9mOhm Max

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-40°C ~ 125°C

Inductance Frequency - Test

100kHz

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

Size / Dimension

0.880" L x 0.640" W (22.35mm x 16.26mm)

Height - Seated (Max)

0.315" (8.00mm)
