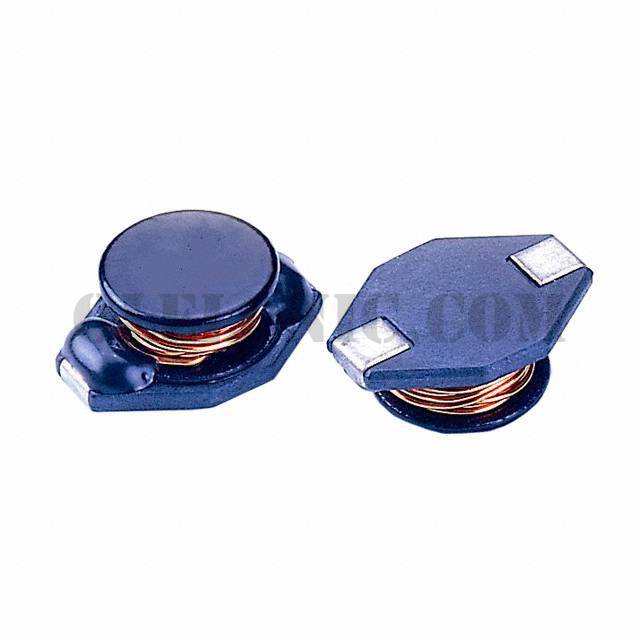

SC3316F-471


SC3316F-471

Part NumberSC3316F-471

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

SC3316F-471 - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package800
ManufacturerSignal Transformer
SeriesSC3316F
PackagingTape & Reel (TR)
Part StatusActive
TypeWirewound
Material - Core-
Inductance470µH
Tolerance±20%
Current Rating (Amps)600mA
Current - Saturation500mA
ShieldingUnshielded
DC Resistance (DCR)1.27Ohm Max
Q @ Freq-
Frequency - Self Resonant-
Ratings-
Operating Temperature-40°C ~ 125°C
Inductance Frequency - Test100kHz
Mounting TypeSurface Mount
Package / CaseNonstandard
Supplier Device Package-
Size / Dimension0.530" L x 0.390" W (13.45mm x 9.90mm)
Height - Seated (Max)0.205" (5.21mm)
