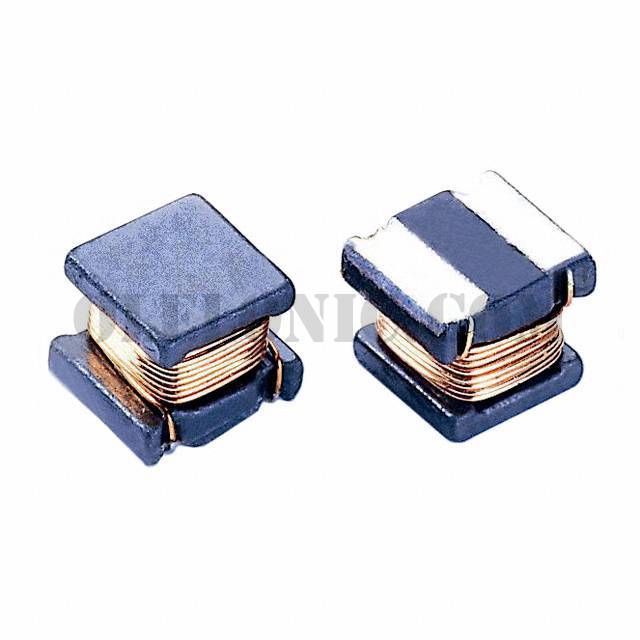

SC2220-1R0

Part NumberSC2220-1R0

ManufacturerSignal Transformer

DescriptionFIXED IND 1UH 4.4A 26.6 MOHM SMD

DatasheetSC2220 Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description1µH Unshielded Wirewound Inductor 4.4A 26.6mOhm Max Nonstandard

To learn about the specification of SC2220-1R0, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SC2220-1R0 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SC2220-1R0.
We are offering SC2220-1R0 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SC2220-1R0 - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

SC2220 Series

Standard Package

1000

Manufacturer

Signal Transformer

Series

SC2220

Packaging

Tape & Reel (TR)

Part Status

Active

Type

Wirewound

Material - Core

Inductance

1µH

Tolerance

±20%

Current Rating (Amps)

4.4A

Current - Saturation

Shielding

Unshielded

DC Resistance (DCR)

26.6mOhm Max

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-40°C ~ 125°C

Inductance Frequency - Test

1MHz

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

Size / Dimension

0.236" L x 0.209" W (6.00mm x 5.30mm)

Height - Seated (Max)

0.197" (5.00mm)
