Categories	Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Datasheet	SBR2A40BLP-13
Standard Package	3000
Manufacturer	Diodes Incorporated
Series	Automotive, AEC-Q101, SBR®
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Single Phase
Technology	Super Barrier
Voltage - Peak Reverse (Max)	40V
Current - Average Rectified (Io)	2A
Voltage - Forward (Vf) (Max) @ If	500mV @ 2A
Current - Reverse Leakage @ Vr	100µA @ 40V
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount

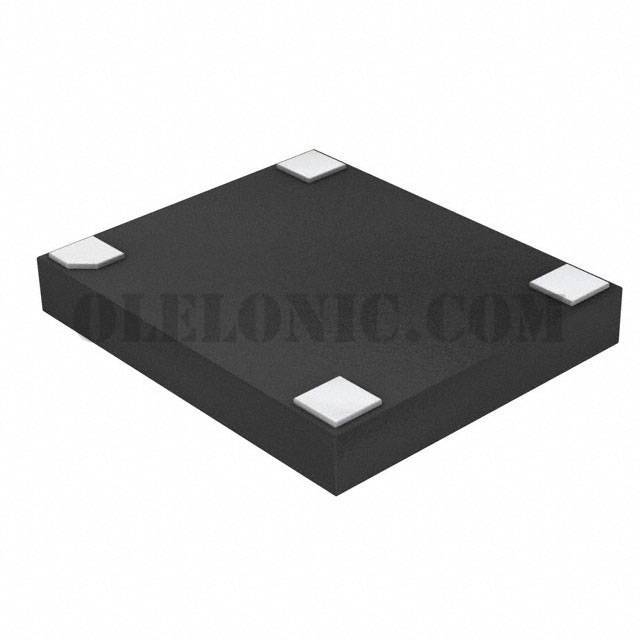

Package / Case	4-VDFN
Supplier Device Package	V-DFN5060-4
