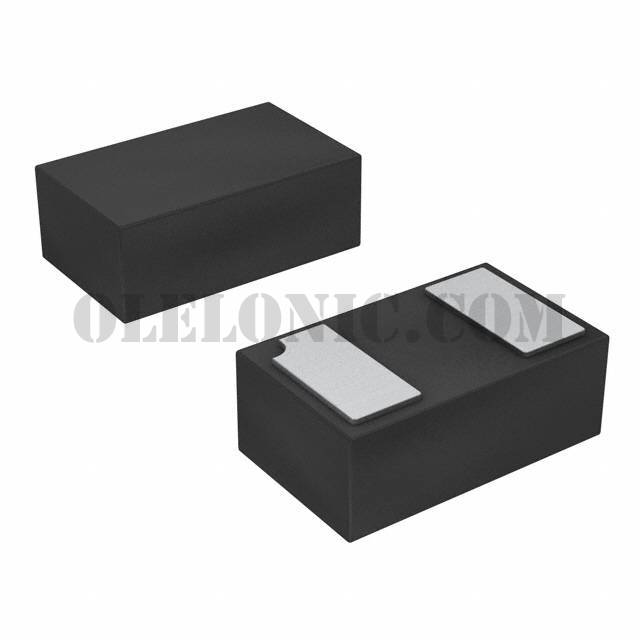

SBR05U20LPS-7

SBR05U20LPS-7

Part NumberSBR05U20LPS-7

ManufacturerDiodes Incorporated

DescriptionDIODE SBR 20V 500MA 2DFN

DatasheetSBR05U20LPS

Package / Case0402 (1006 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Super Barrier 20V 500mA Surface Mount 2-DFN1006

To learn about the specification of SBR05U20LPS-7, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SBR05U20LPS-7 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SBR05U20LPS-7.
We are offering SBR05U20LPS-7 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SBR05U20LPS-7 - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	SBR05U20LPS
Standard Package	1
Manufacturer	Diodes Incorporated
Series	SBR®
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Super Barrier
Voltage - DC Reverse (Vr) (Max)	20V
Current - Average Rectified (Io)	500mA
Voltage - Forward (Vf) (Max) @ If	500mV @ 500mA
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	50µA @ 20V
Capacitance @ Vr, F	-
Mounting Type	Surface Mount
Package / Case	0402 (1006 Metric)
Supplier Device Package	2-DFN1006
Operating Temperature - Junction	-65°C ~ 150°C
Base Part Number	SBR05U20
