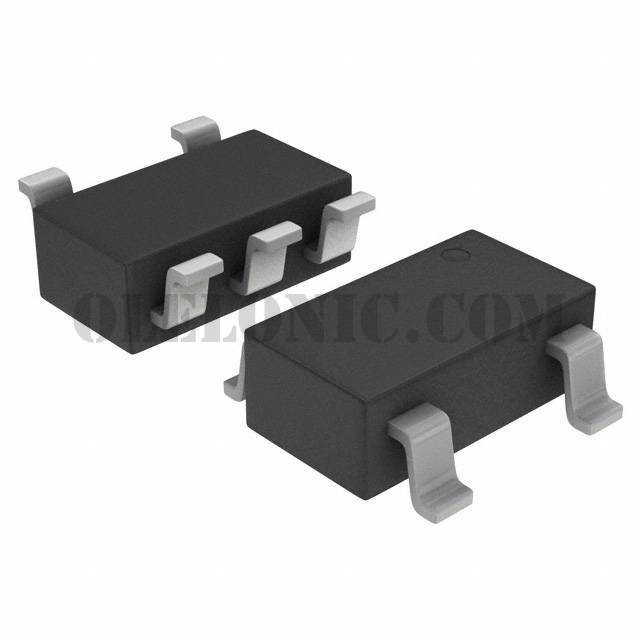

SBE805-TL-W

Part NumberSBE805-TL-W

ManufacturerON Semiconductor

DescriptionDIODE ARRAY SCHOTTKY 30V 5CPH

DatasheetSBE805

Package / CaseSC-74A, SOT-753

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Array 2 Independent Schottky 30V 500mA Surface Mount SC-74A, SOT-753

To learn about the specification of SBE805-TL-W, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SBE805-TL-W with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SBE805-TL-W.
We are offering SBE805-TL-W for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SBE805-TL-W - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Datasheet	SBE805
Standard Package	3000
Manufacturer	ON Semiconductor
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Configuration	2 Independent
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	30V
Current - Average Rectified (Io) (per Diode)	500mA
Voltage - Forward (Vf) (Max) @ If	550mV @ 500mA
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	10ns
Current - Reverse Leakage @ Vr	30µA @ 15V
Operating Temperature - Junction	-55°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	SC-74A, SOT-753
Supplier Device Package	5-CPH
