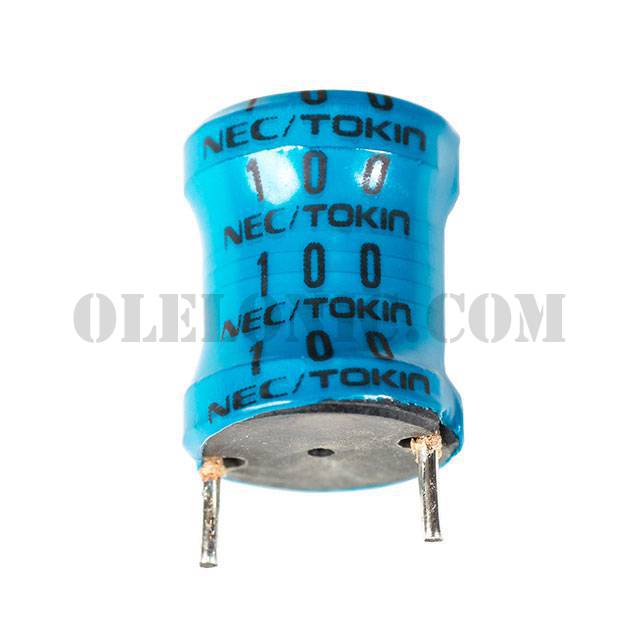

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	SBC Series
Standard Package	4000
Manufacturer	KEMET
Series	SBC
Packaging	Bulk
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	10µH
Tolerance	±20%
Current Rating (Amps)	3.6A
Current - Saturation	3A
Shielding	Unshielded
DC Resistance (DCR)	30mOhm Max
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-20°C ~ 105°C
Inductance Frequency - Test	10kHz
Mounting Type	Through Hole
Package / Case	Radial, Vertical Cylinder
Size / Dimension	0.354" Dia (9.00mm)
Height - Seated (Max)	0.354" (9.00mm)
