Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	SB370-3100
Standard Package	1200
Manufacturer	Diodes Incorporated
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	100V
Current - Average Rectified (Io)	3A
Voltage - Forward (Vf) (Max) @ If	790mV @ 3A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	500µA @ 100V
Capacitance @ Vr, F	-
Mounting Type	Through Hole

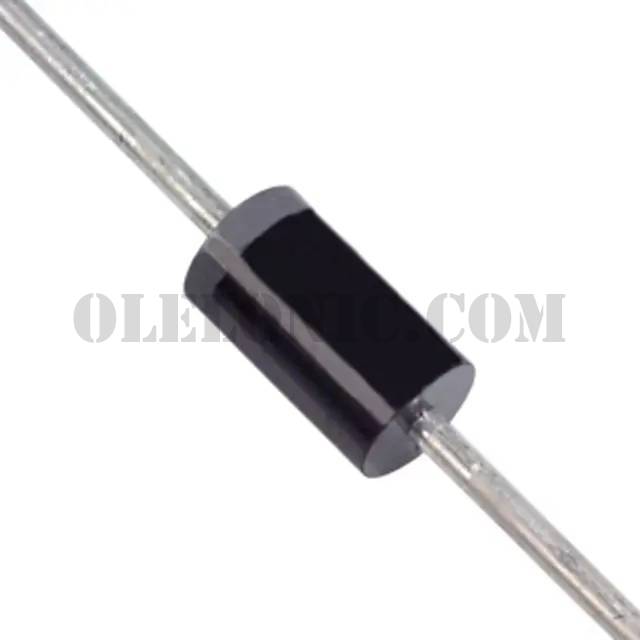

Package / Case	DO-201AD, Axial
Supplier Device Package	DO-201AD
Operating Temperature - Junction	-65°C ~ 150°C
Base Part Number	SB3100
