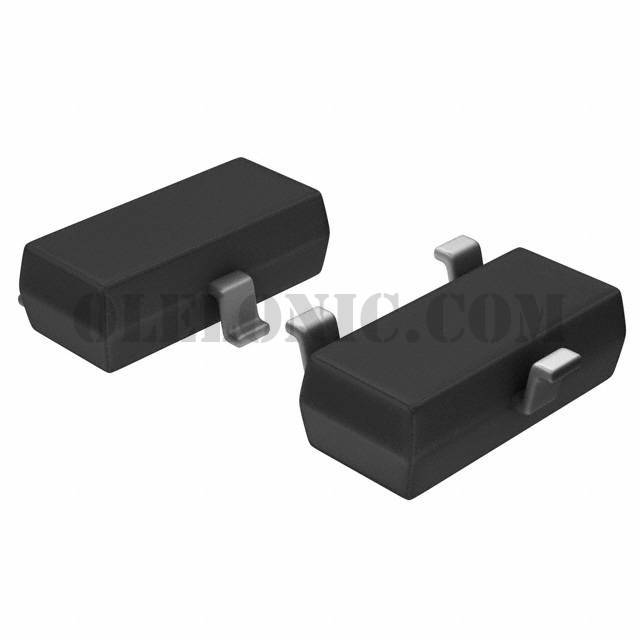

SB05W05C-TB-E

Part NumberSB05W05C-TB-E

ManufacturerON Semiconductor

DescriptionDIODE ARRAY SCHOTTKY 50V 3CP

DatasheetSB05W05C

Package / CaseSC-96

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Array 1 Pair Common Cathode Schottky 50V 500mA Surface Mount SC-96

To learn about the specification of SB05W05C-TB-E, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SB05W05C-TB-E with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SB05W05C-TB-E.
We are offering SB05W05C-TB-E for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SB05W05C-TB-E - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Datasheet	SB05W05C
Standard Package	1
Manufacturer	ON Semiconductor
Series	Automotive, AEC-Q101
Packaging	Cut Tape (CT)
Part Status	Active
Diode Configuration	1 Pair Common Cathode
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	50V
Current - Average Rectified (Io) (per Diode)	500mA
Voltage - Forward (Vf) (Max) @ If	550mV @ 500mA
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	10ns
Current - Reverse Leakage @ Vr	50µA @ 25V
Operating Temperature - Junction	-55°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	SC-96
Supplier Device Package	3-CP
