Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	SA2B - SA2M
Standard Package	1800
Manufacturer	Vishay Semiconductor Diodes Division
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	400V
Current - Average Rectified (Io)	2A
Voltage - Forward (Vf) (Max) @ If	1.1V @ 2A
Speed	Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)	1.5µs
Current - Reverse Leakage @ Vr	3µA @ 400V
Capacitance @ Vr, F	11pF @ 4V, 1MHz
Mounting Type	Surface Mount

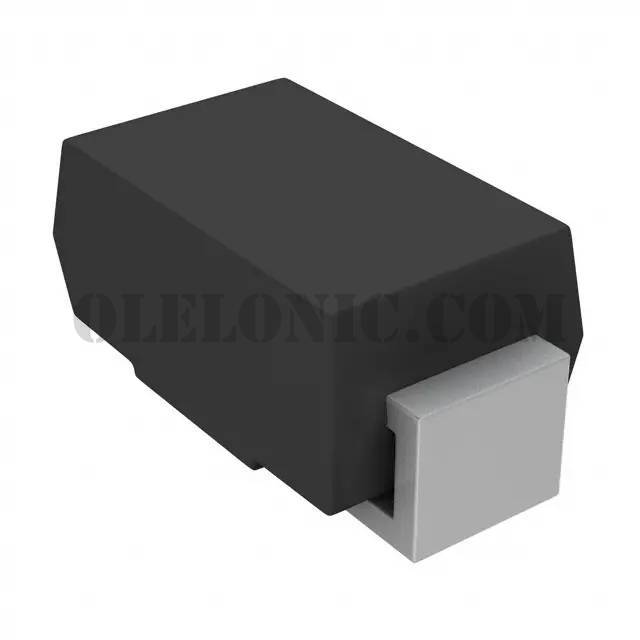

Package / Case	DO-214AC, SMA
Supplier Device Package	DO-214AC (SMA)
Operating Temperature - Junction	-55°C ~ 150°C
