Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	S85V thru S85YR
Standard Package	100
Manufacturer	GeneSiC Semiconductor
Series	-
Packaging	Bulk
Part Status	Active
Diode Type	Standard, Reverse Polarity
Voltage - DC Reverse (Vr) (Max)	1400V
Current - Average Rectified (Io)	85A
Voltage - Forward (Vf) (Max) @ If	1.1V @ 85A
Speed	Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	10µA @ 100V
Capacitance @ Vr, F	-
Mounting Type	Chassis, Stud Mount

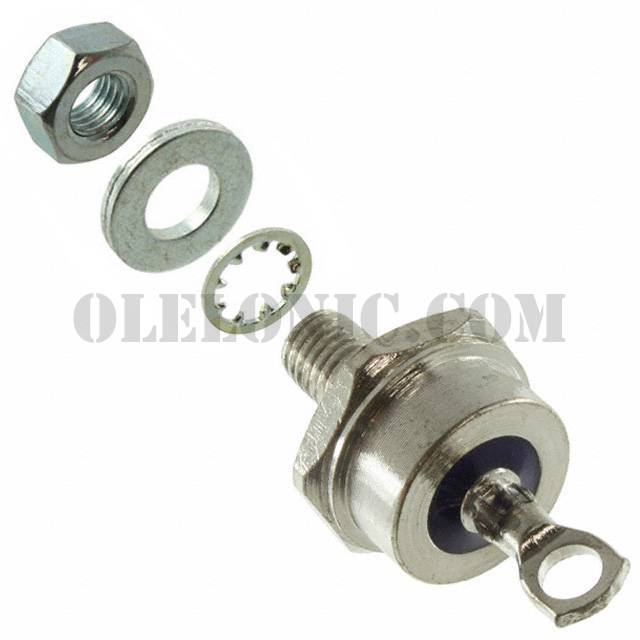

Package / Case	DO-203AB, DO-5, Stud
Supplier Device Package	DO-5
Operating Temperature - Junction	-65°C ~ 150°C
