Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	S85K thru S85QR
Standard Package	100
Manufacturer	GeneSiC Semiconductor
Series	-
Packaging	Bulk
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	1200V
Current - Average Rectified (Io)	85A
Voltage - Forward (Vf) (Max) @ If	1.1V @ 85A
Speed	Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	10µA @ 100V
Capacitance @ Vr, F	-
Mounting Type	Chassis, Stud Mount

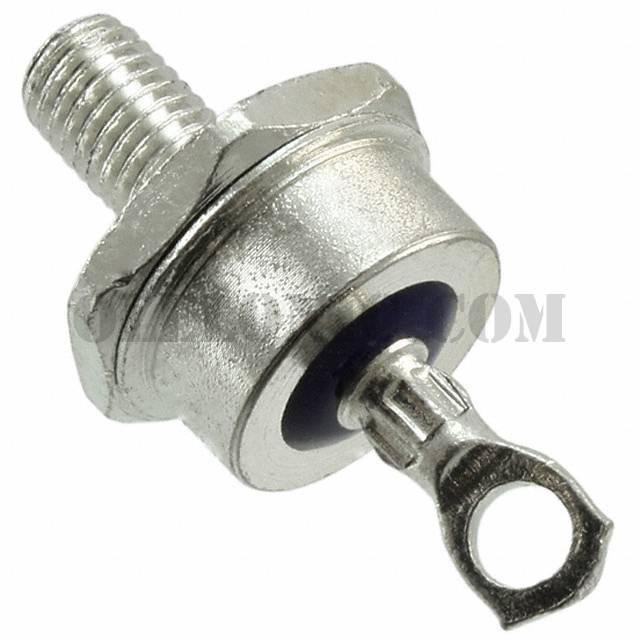

Package / Case	DO-203AB, DO-5, Stud
Supplier Device Package	DO-5
Operating Temperature - Junction	-65°C ~ 180°C

APT60D40BG	Microsemi Corporation, Diode Standard 400V 60A Through Hole TO-247 [B],	View
MURS480ET3G	ON Semiconductor, Diode Standard 800V 4A Surface Mount SMC, SWITCHMODE™	View
EM 1CV1	Sanken, Diode Standard 1000V 1A Through Hole,	View
HS1MFL	Taiwan Semiconductor Corporation, Diode Standard 1000V 1A (DC) Surface Mount SOD-123FL,	View
SFM16PL-TP	Micro Commercial Co, Diode Standard 400V 1A Surface Mount SOD-123FL,	View
ER1G-LTP	Micro Commercial Co, Diode Standard 400V 1A Surface Mount DO-214AA (SMB),	View
VS-1N1206A	Vishay Semiconductor Diodes Division, Diode Standard 600V 12A Chassis, Stud Mount DO-203AA,	View
STTH3002G-TR	STMicroelectronics, Diode Standard 200V 30A Surface Mount D2PAK,	View
FSM15PL-TP	Micro Commercial Co, Diode Standard 600V 1A Surface Mount SOD-123FL,	View
FDH333	ON Semiconductor, Diode Standard 125V 200mA Through Hole DO-35,	View
RS2KA R3G	Taiwan Semiconductor Corporation, Diode Standard 800V 1.5A Surface Mount DO-214AC (SMA),	View
JANS1N5615	Microsemi Corporation, Diode Standard 200V 1A Through Hole, Military, MIL-PRF-19500/429	View

S85Q

Part NumberS85Q
