Categories	Discrete Semiconductor Products / Thyristors - SCRs
Datasheet	SzX8zSz Series
Standard Package	1
Manufacturer	Littelfuse Inc.
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Voltage - Off State	600V
Voltage - Gate Trigger (Vgt) (Max)	800mV
Current - Gate Trigger (Igt) (Max)	200µA
Voltage - On State (Vtm) (Max)	1.7V
Current - On State (It (AV)) (Max)	510mA
Current - On State (It (RMS)) (Max)	800mA
Current - Hold (Ih) (Max)	5mA
Current - Off State (Max)	3µA
Current - Non Rep. Surge 50, 60Hz (Itsm)	8A, 10A
SCR Type	Sensitive Gate
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount

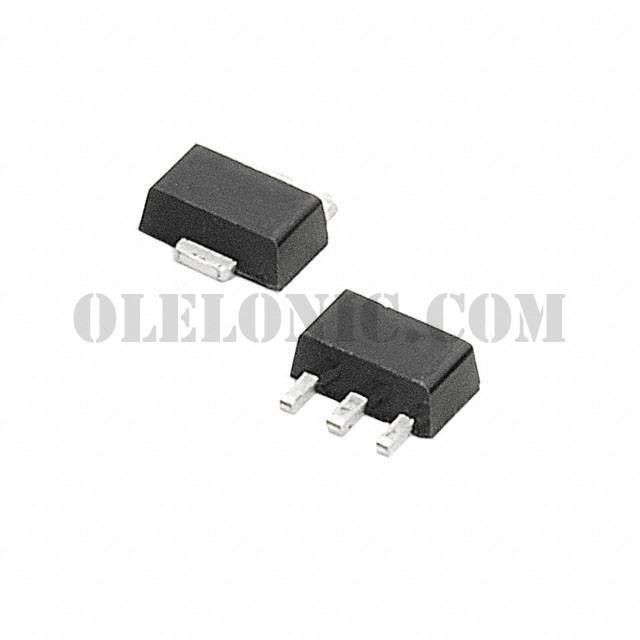

Package / Case	TO-243AA
Supplier Device Package	SOT-89

MCR706AT4G	Littelfuse Inc., SCR 400V 4A Sensitive Gate Surface Mount DPAK,	View
P0102BL 5AA4	STMicroelectronics, SCR 200V 250mA Sensitive Gate Surface Mount SOT-23-3,	View
P0130AA 1EA3	STMicroelectronics, SCR 100V 800mA Sensitive Gate Through Hole TO-92-3,	View
S6X8TSRP	Littelfuse Inc., SCR 600V 800mA Sensitive Gate Surface Mount SOT-223,	View
2N5063	Central Semiconductor Corp, SCR 150V 800mA Sensitive Gate Through Hole TO-92,	View
S6X8TSRP	Littelfuse Inc., SCR 600V 800mA Sensitive Gate Surface Mount SOT-223,	View
X0202NUF	STMicroelectronics, SCR 800V 1.25A Sensitive Gate Surface Mount SMBflat-3L,	View
X0405NF 1AA2	STMicroelectronics, SCR 800V 1.35A Sensitive Gate Through Hole TO-202,	View
TS110-8A2-AP	STMicroelectronics, SCR 800V 1.25A Sensitive Gate Through Hole TO-92-3,	View
SJ6008D1RP	Littelfuse Inc., SCR 600V 8A Sensitive Gate Surface Mount TO-252, (D-Pak), SJ	View
CMPS5064 TR	Central Semiconductor Corp, SCR 400V 250mA Sensitive Gate Surface Mount SOT-23,	View
X00619MN5AL2	STMicroelectronics, SCR 600V 800mA Sensitive Gate Surface Mount SOT-223,	View

S6X8BSRP

Part NumberS6X8BSRP
