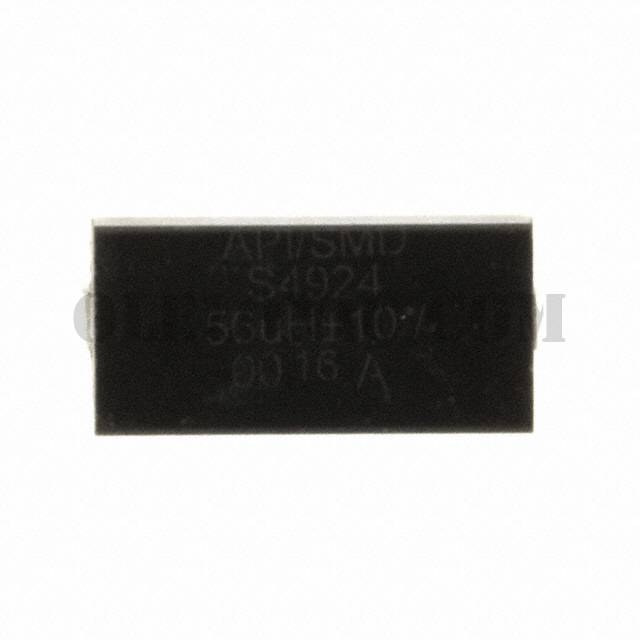

S4924-563K

Part NumberS4924-563K

ManufacturerAPI Delevan Inc.

DescriptionFIXED IND 56UH 369MA 2.23 OHM

DatasheetS4924(R) Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description56µH Shielded Inductor 369mA 2.23Ohm Max Nonstandard

To learn about the specification of S4924-563K, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add S4924-563K with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of S4924-563K.
We are offering S4924-563K for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

S4924-563K - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

S4924(R) Series

Standard Package

800

Manufacturer

API Delevan Inc.

Series

S4924

Packaging

Tape & Reel (TR)

Part Status

Active

Type

Material - Core

Ferrite

Inductance

56µH

Tolerance

±10%

Current Rating (Amps)

369mA

Current - Saturation

124mA

Shielding

Shielded

DC Resistance (DCR)

2.23Ohm Max

Q @ Freq

50 @ 2.5MHz

Frequency - Self Resonant

25MHz

Ratings

Operating Temperature

-55°C ~ 125°C

Inductance Frequency - Test

2.5MHz

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

Size / Dimension

0.505" L x 0.240" W (12.82mm x 6.09mm)

Height - Seated (Max)

0.220" (5.58mm)
