S34566

Part NumberS34566

ManufacturerNewava Technology Inc.

DescriptionFIXED IND 68UH 3.25A 45 MOHM TH

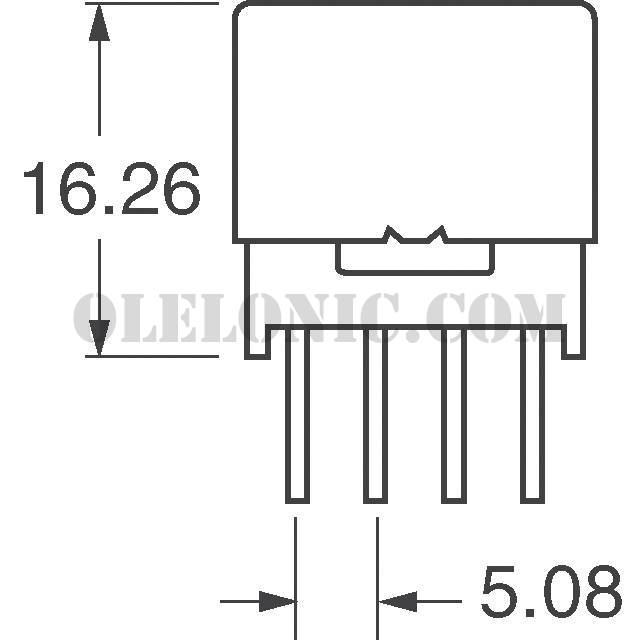

DatasheetS34566 Drawing

Package / CaseRadial, Horizontal, 8 Leads

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description68µH Unshielded Inductor 3.25A 45mOhm Max Radial, Horizontal, 8 Leads

To learn about the specification of S34566, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add S34566 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of S34566.
We are offering S34566 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

S34566 - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

S34566 Drawing

Standard Package

Manufacturer

Newava Technology Inc.

Series

Packaging

Bulk

Part Status

Active

Type

Material - Core

Inductance

68µH

Tolerance

Current Rating (Amps)

3.25A

Current - Saturation

Shielding

Unshielded

DC Resistance (DCR)

45mOhm Max

Q @ Freq

Frequency - Self Resonant

2MHz

Ratings

Operating Temperature

Inductance Frequency - Test

10kHz

Mounting Type

Through Hole

Package / Case

Radial, Horizontal, 8 Leads

Supplier Device Package

Size / Dimension

0.850" L x 0.790" W (21.59mm x 20.07mm)

Height - Seated (Max)

0.638" (16.20mm)
