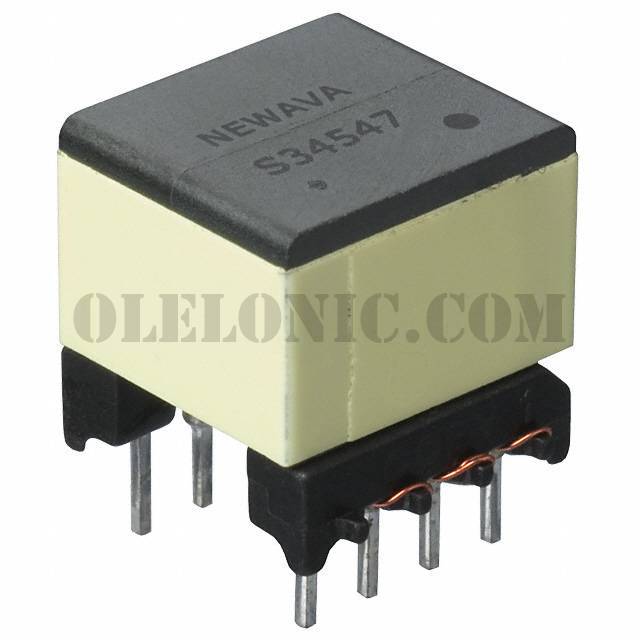

S34547

Part NumberS34547

ManufacturerNewava Technology Inc.

DescriptionFIXED IND 150UH 180 MOHM TH

DatasheetS34547 Drawing

Package / CaseRadial, Horizontal, 8 Leads

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description150µH Unshielded Inductor 180mOhm Max Radial, Horizontal, 8 Leads

To learn about the specification of S34547, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add S34547 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of S34547.
We are offering S34547 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

S34547 - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

S34547 Drawing

Standard Package

Manufacturer

Newava Technology Inc.

Series

Packaging

Bulk

Part Status

Active

Type

Material - Core

Inductance

150µH

Tolerance

Current - Saturation

Shielding

Unshielded

DC Resistance (DCR)

180mOhm Max

Q @ Freq

Frequency - Self Resonant

950kHz

Ratings

Operating Temperature

Inductance Frequency - Test

10kHz

Mounting Type

Through Hole

Package / Case

Radial, Horizontal, 8 Leads

Supplier Device Package

Size / Dimension

0.500" L x 0.470" W (12.70mm x 11.94mm)

Height - Seated (Max)

0.450" (11.43mm)
