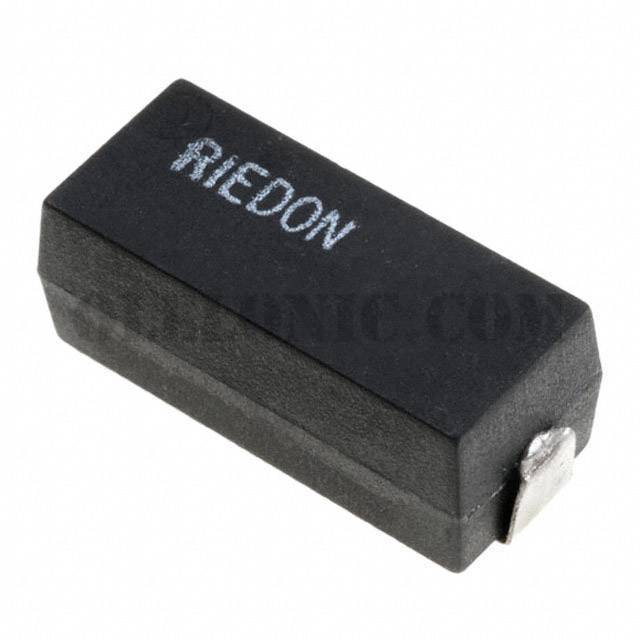

S2-680RF1


S2-680RF1

Part NumberS2-680RF1

Manufacturer

Description

Datasheet

Package / Case2615 J-Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

S2-680RF1 - Product Attributes

Categories Resistors / Chip Resistor - Surface Mount
Datasheet
Standard Package1
ManufacturerRiedon
SeriesS
PackagingCut Tape (CT)
Part StatusActive
Resistance680 Ohms
Tolerance±1%
Power (Watts)1W
CompositionWirewound
FeaturesCurrent Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety
Temperature Coefficient±20ppm/°C
Operating Temperature-55°C ~ 275°C
Package / Case2615 J-Lead
Supplier Device Package-
Size / Dimension0.260" L x 0.154" W (6.60mm x 3.90mm)
Height - Seated (Max)0.142" (3.60mm)
Number of Terminations2
Failure Rate-
