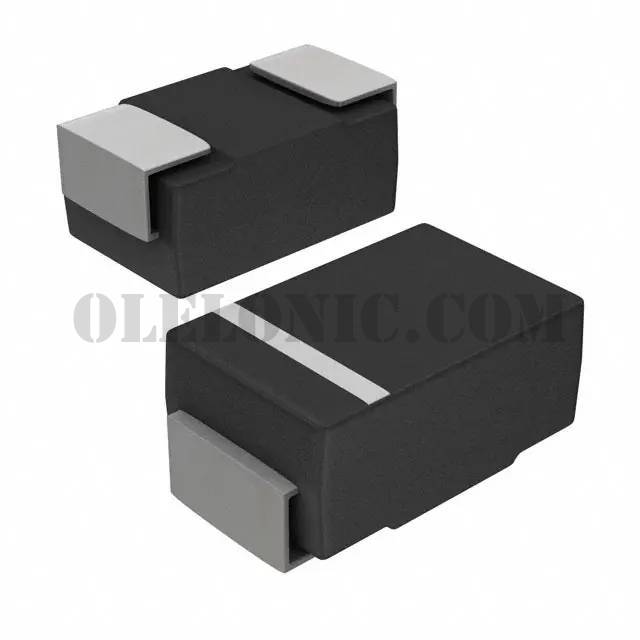

S1K-13-F

S1K-13-F

Part NumberS1K-13-F

ManufacturerDiodes Incorporated

DescriptionDIODE GEN PURP 800V 1A SMA

DatasheetS1A(B)- S1M(B)

Package / CaseDO-214AC, SMA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 800V 1A Surface Mount SMA

To learn about the specification of S1K-13-F, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add S1K-13-F with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of S1K-13-F.
We are offering S1K-13-F for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

S1K-13-F - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	S1A(B)- S1M(B)
Standard Package	1
Manufacturer	Diodes Incorporated
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	800V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	1.1V @ 1A
Speed	Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)	3µs
Current - Reverse Leakage @ Vr	5µA @ 800V
Capacitance @ Vr, F	10pF @ 4V, 1MHz
Mounting Type	Surface Mount
Package / Case	DO-214AC, SMA
Supplier Device Package	SMA
Operating Temperature - Junction	-65°C ~ 150°C
Base Part Number	S1K
