Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	S1DFS - S1MFS
Standard Package	1
Manufacturer	Taiwan Semiconductor Corporation
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	200V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	1.1V @ 1A
Speed	Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	1µA @ 200V
Capacitance @ Vr, F	9pF @ 4V, 1MHz
Mounting Type	Surface Mount

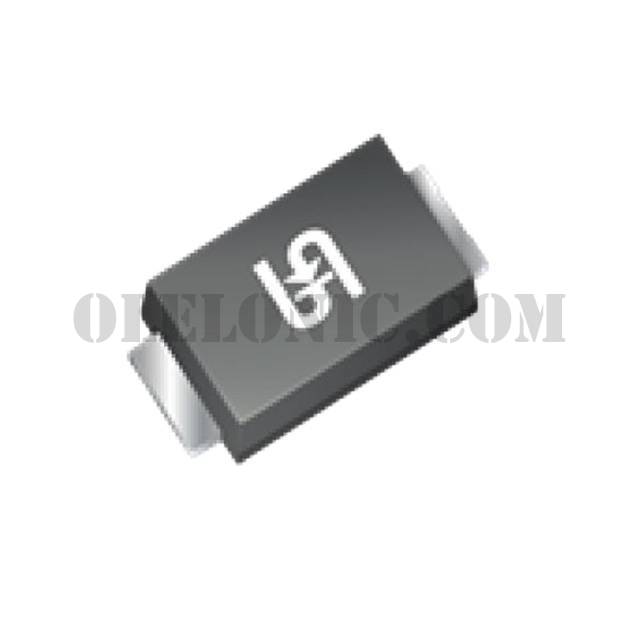

Package / Case	SOD-128
Supplier Device Package	SOD-128
Operating Temperature - Junction	-55°C ~ 150°C
