S14100034

Part NumberS14100034

ManufacturerWurth Electronics Inc.

DescriptionFIXED IND 22UH 18A 4.5 MOHM

DatasheetS14100034 Spec Sheet

Package / CaseRadial, Horizontal (Open)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

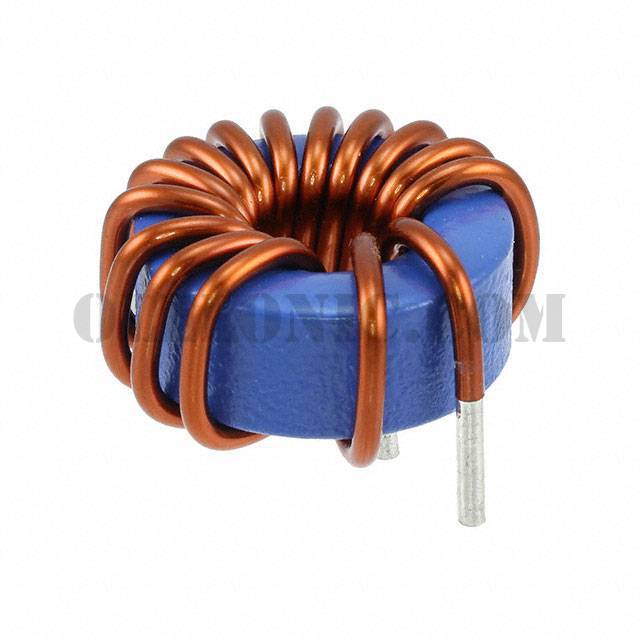

Detailed Description22µH Unshielded Toroidal Inductor 18A 4.5mOhm Max Radial, Horizontal (Open)

To learn about the specification of S14100034, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add S14100034 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of S14100034.
We are offering S14100034 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

S14100034 - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

S14100034 Spec Sheet

Standard Package

Manufacturer

Wurth Electronics Inc.

Series

WE-FI

Packaging

Tray

Part Status

Active

Type

Toroidal

Material - Core

Ferrite

Inductance

22µH

Tolerance

±20%

Current Rating (Amps)

18A

Current - Saturation

Shielding

Unshielded

DC Resistance (DCR)

4.5mOhm Max

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-40°C ~ 125°C

Inductance Frequency - Test

100kHz

Mounting Type

Through Hole

Package / Case

Radial, Horizontal (Open)

Supplier Device Package

Size / Dimension

1.378" Dia (35.00mm)

Height - Seated (Max)

0.689" (17.50mm)
