Categories	Resistors / Chip Resistor - Surface Mount
Datasheet	RT Series Datasheet
Standard Package	5000
Manufacturer	Yageo
Series	RT
Packaging	Tape & Reel (TR)
Part Status	Active
Resistance	10 kOhms
Tolerance	±0.1%
Power (Watts)	0.25W, 1/4W
Composition	Thin Film
Features	-
Temperature Coefficient	±25ppm/°C
Operating Temperature	-55°C ~ 155°C
Package / Case	1206 (3216 Metric)
Supplier Device Package	1206
Size / Dimension	0.122" L x 0.063" W (3.10mm x 1.60mm)
Height - Seated (Max)	0.026" (0.65mm)
Number of Terminations	2
Failure Rate	-

RT0805BRE07100RL	Yageo, 100 Ohms ±0.1% 0.125W, 1/8W Chip Resistor 0805 (2012 Metric) Thin Film, RT	View
RT0805BRD073K3L	Yageo, 3.3 kOhms ±0.1% 0.125W, 1/8W Chip Resistor 0805 (2012 Metric) Thin Film, RT	View
RT0603BRD07143KL	Yageo, 143 kOhms ±0.1% 0.1W, 1/10W Chip Resistor 0603 (1608 Metric) Thin Film, RT	View
RT0603BRE073K6L	Yageo, 3.6 kOhms ±0.1% 0.1W, 1/10W Chip Resistor 0603 (1608 Metric) Thin Film, RT	View
RT0603DRE0715RL	Yageo, 15 Ohms ±0.5% 0.1W, 1/10W Chip Resistor 0603 (1608 Metric) Thin Film, RT	View
RT0805BRD0715KL	Yageo, 15 kOhms ±0.1% 0.125W, 1/8W Chip Resistor 0805 (2012 Metric) Thin Film, RT	View
RT0402DRE0713KL	Yageo, 13 kOhms ±0.5% 0.063W, 1/16W Chip Resistor 0402 (1005 Metric) Thin Film, RT	View
RT0805FRE071KL	Yageo, 1 kOhms ±1% 0.125W, 1/8W Chip Resistor 0805 (2012 Metric) Thin Film, RT	View
RT0603BRD072K61L	Yageo, 2.61 kOhms ±0.1% 0.1W, 1/10W Chip Resistor 0603 (1608 Metric) Thin Film, RT	View
RT0603DRE0720RL	Yageo, 20 Ohms ±0.5% 0.1W, 1/10W Chip Resistor 0603 (1608 Metric) Thin Film, RT	View
RT0402BRD07240RL	Yageo, 240 Ohms ±0.1% 0.063W, 1/16W Chip Resistor 0402 (1005 Metric) Thin Film, RT	View
RT0603DRE0712K1L	Yageo, 12.1 kOhms ±0.5% 0.1W, 1/10W Chip Resistor 0603 (1608 Metric) Thin Film, RT	View

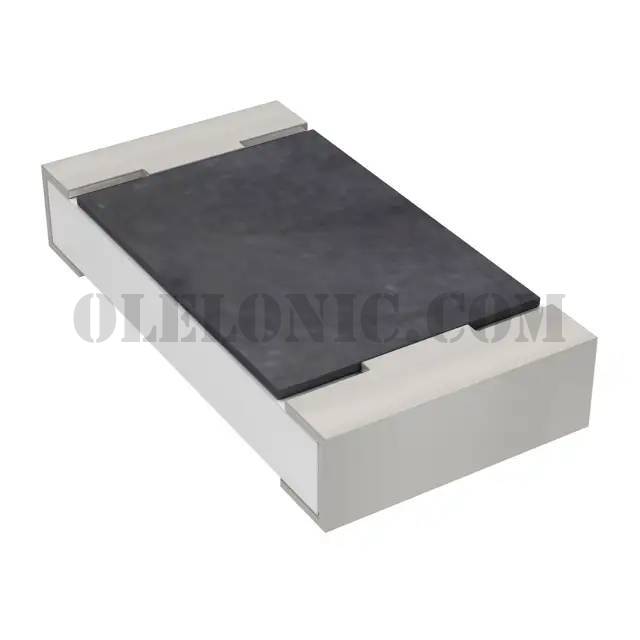

RT1206BRD0710KL

Part NumberRT1206BRD0710KL
