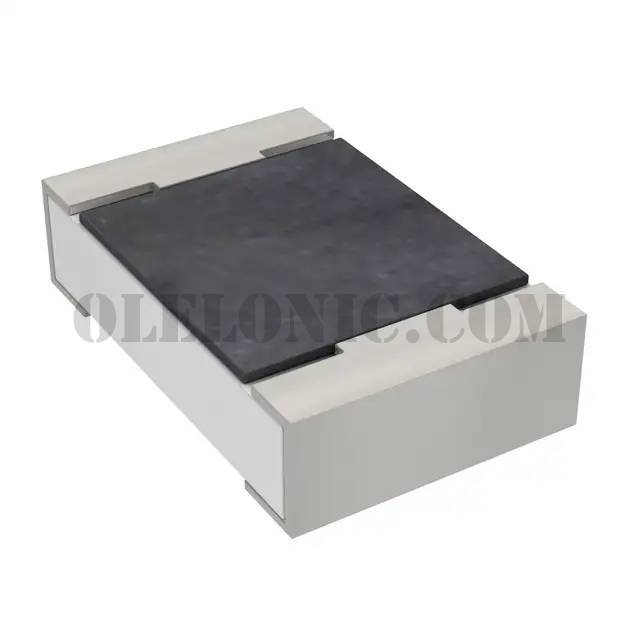

Categories	Resistors / Chip Resistor - Surface Mount
Datasheet	RT Series Datasheet
Standard Package	5000
Manufacturer	Yageo
Series	RT
Packaging	Tape & Reel (TR)
Part Status	Active
Resistance	6.2 Ohms
Tolerance	±0.5%
Power (Watts)	0.125W, 1/8W
Composition	Thin Film
Features	-
Temperature Coefficient	±25ppm/°C
Operating Temperature	-55°C ~ 155°C
Package / Case	0805 (2012 Metric)
Supplier Device Package	0805
Size / Dimension	0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max)	0.024" (0.60mm)
Number of Terminations	2
Failure Rate	-
