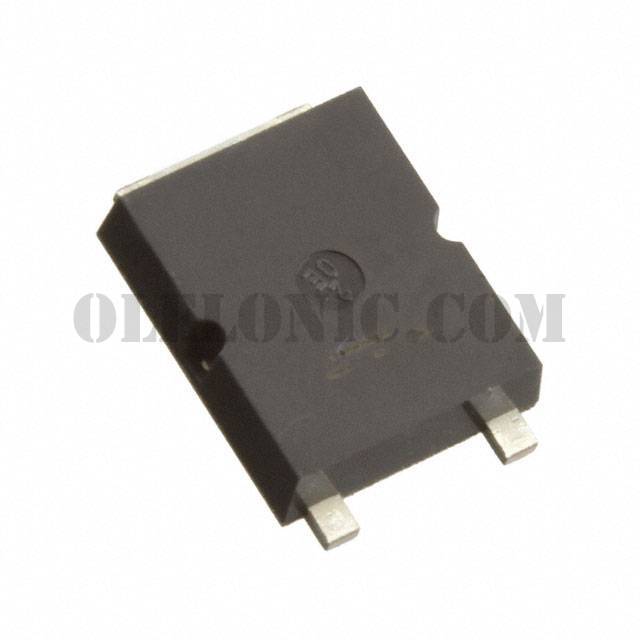

RSY160P05TL

Part NumberRSY160P05TL

ManufacturerRohm Semiconductor

DescriptionMOSFET P-CH 45V 16A TCPT3

DatasheetRSY160P05

Package / Case3-SMD, Flat Leads

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 45V 16A (Ta) 20W (Tc) Surface Mount TCPT3

To learn about the specification of RSY160P05TL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add RSY160P05TL with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of RSY160P05TL.
We are offering RSY160P05TL for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

RSY160P05TL - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

RSY160P05

Standard Package

2500

Manufacturer

Rohm Semiconductor

Series

Packaging

Tape & Reel (TR)

Part Status

Not For New Designs

FET Type

P-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

45V

Current - Continuous Drain (Id) @ 25°C

16A (Ta)

Drive Voltage (Max Rds On, Min Rds On)

4V, 10V

Rds On (Max) @ Id, Vgs

50mOhm @ 16A, 10V

Vgs(th) (Max) @ Id

2.5V @ 1mA

Gate Charge (Qg) (Max) @ Vgs

25.5nC @ 5V

Vgs (Max)

±20V

Input Capacitance (Ciss) (Max) @ Vds

2150pF @ 10V

FET Feature

Power Dissipation (Max)

20W (Tc)

Operating Temperature

150°C (TJ)

Mounting Type

Surface Mount

Supplier Device Package

TCPT3

Package / Case

3-SMD, Flat Leads
