RSJ301N10FRATL

RSJ301N10FRATL

Part NumberRSJ301N10FRATL

ManufacturerRohm Semiconductor

DescriptionNCH 100V 30A POWER MOSFET

DatasheetRSJ301N10FRA

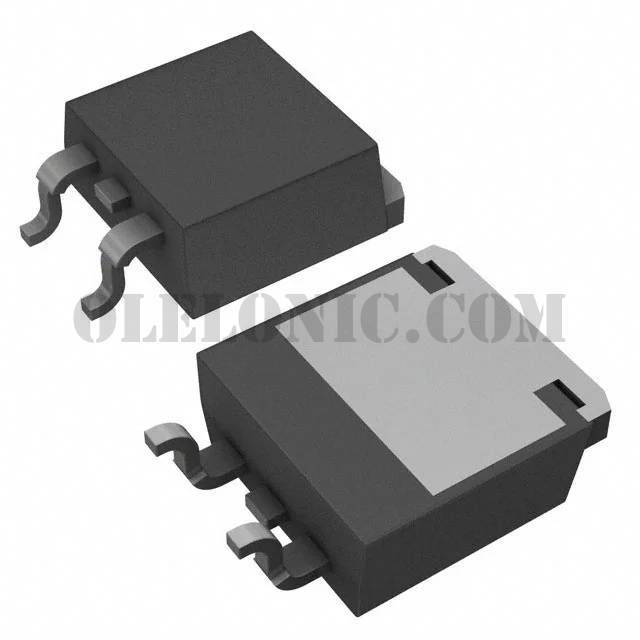

Package / CaseTO-263-3, D²Pak (2 Leads + Tab), TO-263AB

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 100V 30A (Ta) 50W (Ta) Surface Mount LPTS

To learn about the specification of RSJ301N10FRATL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add RSJ301N10FRATL with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of RSJ301N10FRATL.
We are offering RSJ301N10FRATL for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

RSJ301N10FRATL - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	RSJ301N10FRA
Standard Package	1000
Manufacturer	Rohm Semiconductor
Series	Automotive, AEC-Q101
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100V
Current - Continuous Drain (Id) @ 25°C	30A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4V, 10V
Rds On (Max) @ Id, Vgs	46mOhm @ 15A, 10V
Vgs(th) (Max) @ Id	2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	60nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2100pF @ 25V
FET Feature	-
Power Dissipation (Max)	50W (Ta)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	LPTS
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
