RS512-2-02
RS512-2-02

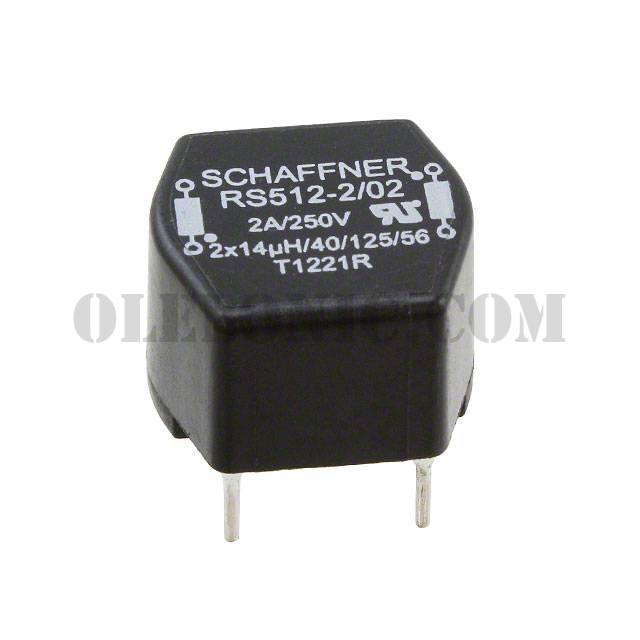

Part Number RS512-2-02 Description COMMON MODE CHOKE 13UH 2A 2LN TH Package / Case Horizontal, 4 PC PinUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 13µH @ 1kHz 2 Line Common Mode Choke Through Hole 2A (Typ) DCR 30mOhm (Typ)
To learn about the specification of RS512-2-02, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add RS512-2-02 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of RS512-2-02.
We are offering RS512-2-02 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
RS512-2-02 - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet RS Series Datasheet Standard Package 500 Manufacturer Schaffner EMC Inc. Series RS Packaging Tube Part Status Not For New Designs Filter Type Signal Line Number of Lines 2 Inductance @ Frequency 13µH @ 1kHz Current Rating (Max) 2A (Typ) DC Resistance (DCR) (Max) 30mOhm (Typ) Voltage Rating - DC - Voltage Rating - AC 250V Operating Temperature -40°C ~ 125°C Ratings - Approvals UR, VDE Features - Mounting Type Through Hole Size / Dimension 0.697" L x 0.673" W (17.70mm x 17.10mm) Height (Max) 0.492" (12.50mm) Package / Case Horizontal, 4 PC Pin
