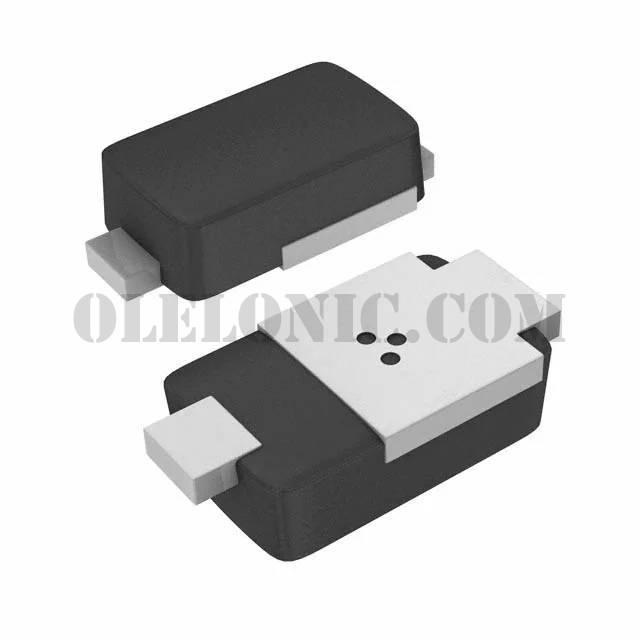

RS1PD-M3/84A

RS1PD-M3/84A

Part NumberRS1PD-M3/84A

ManufacturerVishay Semiconductor Diodes Division

DescriptionDIODE GEN PURP 200V 1A DO220AA

DatasheetRS1PB thru RS1PJ

Package / CaseDO-220AA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 200V 1A Surface Mount DO-220AA (SMP)

To learn about the specification of RS1PD-M3/84A, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add RS1PD-M3/84A with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of RS1PD-M3/84A.
We are offering RS1PD-M3/84A for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

RS1PD-M3/84A - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	RS1PB thru RS1PJ
Standard Package	1
Manufacturer	Vishay Semiconductor Diodes Division
Series	eSMP®
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	200V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	1.3V @ 1A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	150ns
Current - Reverse Leakage @ Vr	1µA @ 200V
Capacitance @ Vr, F	9pF @ 4V, 1MHz
Mounting Type	Surface Mount
Package / Case	DO-220AA
Supplier Device Package	DO-220AA (SMP)
Operating Temperature - Junction	-55°C ~ 150°C
