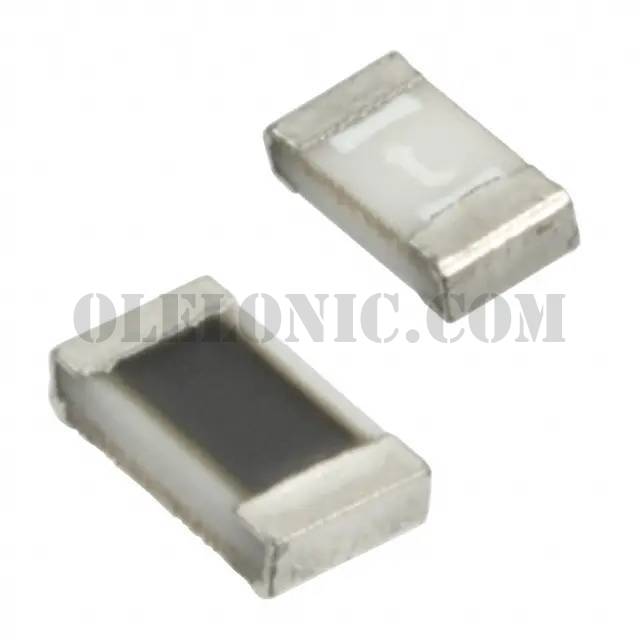

Categories	Resistors / Chip Resistor - Surface Mount
Datasheet	RR Series Datasheet
Standard Package	5000
Manufacturer	Susumu
Series	RR
Packaging	Tape & Reel (TR)
Part Status	Active
Resistance	15 kOhms
Tolerance	±0.5%
Power (Watts)	0.063W, 1/16W
Composition	Thin Film
Features	-
Temperature Coefficient	±25ppm/°C
Operating Temperature	-55°C ~ 125°C
Package / Case	0603 (1608 Metric)
Supplier Device Package	0603
Size / Dimension	0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max)	0.020" (0.50mm)
Number of Terminations	2
Failure Rate	-

RR1220P-244-D	Susumu, 240 kOhms ±0.5% 0.1W, 1/10W Chip Resistor 0805 (2012 Metric) Thin Film, RR	View
RR0816P-2740-D-43A	Susumu, 274 Ohms ±0.5% 0.063W, 1/16W Chip Resistor 0603 (1608 Metric) Thin Film, RR	View
RR0816Q-24R9-D-39R	Susumu, 24.9 Ohms ±0.5% 0.063W, 1/16W Chip Resistor 0603 (1608 Metric) Thin Film, RR	View
RR0816P-272-D	Susumu, 2.7 kOhms ±0.5% 0.063W, 1/16W Chip Resistor 0603 (1608 Metric) Thin Film, RR	View
RR0510R-49R9-D	Susumu, 49.9 Ohms ±0.5% 0.063W, 1/16W Chip Resistor 0402 (1005 Metric) Thin Film, RR	View
RR1220P-133-D	Susumu, 13 kOhms ±0.5% 0.1W, 1/10W Chip Resistor 0805 (2012 Metric) Thin Film, RR	View
RR0816P-9531-D-95H	Susumu, 9.53 kOhms ±0.5% 0.063W, 1/16W Chip Resistor 0603 (1608 Metric) Thin Film, RR	View
RR0816Q-160-D	Susumu, 16 Ohms ±0.5% 0.063W, 1/16W Chip Resistor 0603 (1608 Metric) Thin Film, RR	View
RR1220P-3092-D-M	Susumu, 30.9 kOhms ±0.5% 0.1W, 1/10W Chip Resistor 0805 (2012 Metric) Thin Film, RR	View
RR0816P-6812-D-81C	Susumu, 68.1 kOhms ±0.5% 0.063W, 1/16W Chip Resistor 0603 (1608 Metric) Thin Film, RR	View
RR0816P-1372-D-14C	Susumu, 13.7 kOhms ±0.5% 0.063W, 1/16W Chip Resistor 0603 (1608 Metric) Thin Film, RR	View
RR0816P-1021-D-02H	Susumu, 1.02 kOhms ±0.5% 0.063W, 1/16W Chip Resistor 0603 (1608 Metric) Thin Film, RR	View

RR0816P-153-D

Part NumberRR0816P-153-D
