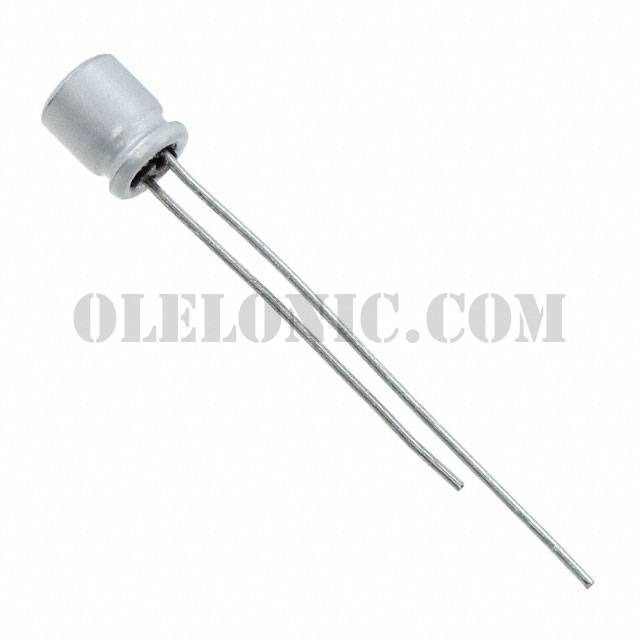

Categories	Capacitors / Aluminum - Polymer Capacitors
Datasheet	RNU Series Datasheet
Standard Package	200
Manufacturer	Nichicon
Series	FPCAP, RNU
Packaging	Bulk
Part Status	Active
Type	Polymer
Capacitance	10µF
Tolerance	±20%
Voltage - Rated	10V
ESR (Equivalent Series Resistance)	220mOhm
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	70mA @ 120Hz
Ripple Current @ High Frequency	700mA @ 100kHz
Lead Spacing	0.059" (1.50mm)
Size / Dimension	0.157" Dia (4.00mm)
Height - Seated (Max)	0.236" (6.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

RNU1D681MDN1PH	Nichicon, 680µF 20V Aluminum Polymer Capacitor Radial, Can 12mOhm 2000 Hrs @ 105°C, FPCAP, RNU	View
RNU0J471MDN1KX	Nichicon, 470µF 6.3V Aluminum Polymer Capacitor Radial, Can 7mOhm 2000 Hrs @ 105°C, FPCAP, RNU	View
RNU0J681MDN1KX	Nichicon, 680µF 6.3V Aluminum Polymer Capacitor Radial, Can 7mOhm 2000 Hrs @ 105°C, FPCAP, RNU	View
RNU1D391MDN1KX	Nichicon, 390µF 20V Aluminum Polymer Capacitor Radial, Can 14mOhm 2000 Hrs @ 105°C, FPCAP, RNU	View
RNU1E221MDNASQPX	Nichicon, 220µF 25V Aluminum Polymer Capacitor Radial, Can 16mOhm 2000 Hrs @ 105°C, FPCAP, RNU	View
RNU0J471MDN1KX	Nichicon, 470µF 6.3V Aluminum Polymer Capacitor Radial, Can 7mOhm 2000 Hrs @ 105°C, FPCAP, RNU	View
RNU1C271MDN1KX	Nichicon, 270µF 16V Aluminum Polymer Capacitor Radial, Can 8mOhm 2000 Hrs @ 105°C, FPCAP, RNU	View
RNU1E331MDNASQPH	Nichicon, 330µF 25V Aluminum Polymer Capacitor Radial, Can 14mOhm 2000 Hrs @ 105°C, FPCAP, RNU	View
RNU0G182MDN1PH	Nichicon, 1800µF 4V Aluminum Polymer Capacitor Radial, Can 7mOhm 2000 Hrs @ 105°C, FPCAP, RNU	View
RNU1A122MDN1PH	Nichicon, 1200µF 10V Aluminum Polymer Capacitor Radial, Can 9mOhm 2000 Hrs @ 105°C, FPCAP, RNU	View
RNU1E331MDNASQPH	Nichicon, 330µF 25V Aluminum Polymer Capacitor Radial, Can 14mOhm 2000 Hrs @ 105°C, FPCAP, RNU	View
RNU1C271MDN1KX	Nichicon, 270µF 16V Aluminum Polymer Capacitor Radial, Can 8mOhm 2000 Hrs @ 105°C, FPCAP, RNU	View

RNU1A100MDSASQ

Part NumberRNU1A100MDSASQ
