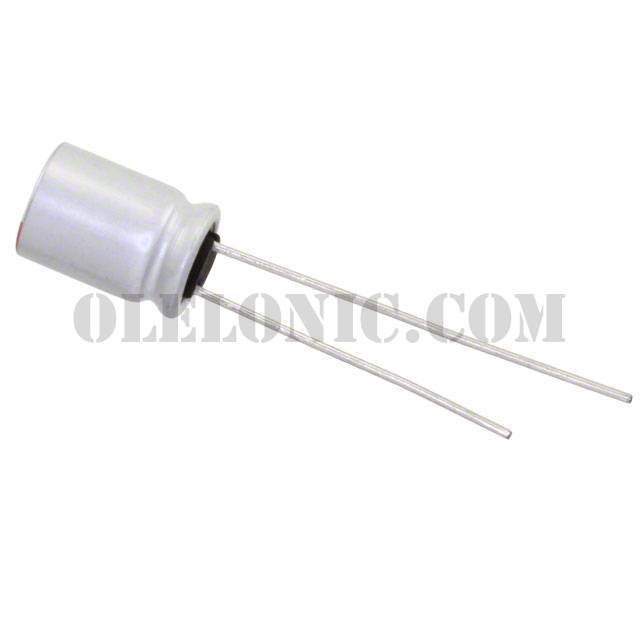

Categories	Capacitors / Aluminum - Polymer Capacitors
Datasheet	RNS Series Datasheet
Standard Package	200
Manufacturer	Nichicon
Series	FPCAP, RNS
Packaging	Bulk
Part Status	Active
Type	Polymer
Capacitance	47µF
Tolerance	±20%
Voltage - Rated	16V
ESR (Equivalent Series Resistance)	42mOhm
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	240mA @ 120Hz
Ripple Current @ High Frequency	2.4A @ 100kHz
Lead Spacing	0.098" (2.50mm)
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.433" (11.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

RNS1E101MDN1	Nichicon, 100µF 25V Aluminum Polymer Capacitor Radial, Can 15mOhm 2000 Hrs @ 105°C, FPCAP, RNS	View
RNS1C101MDN1	Nichicon, 100µF 16V Aluminum Polymer Capacitor Radial, Can 21mOhm 2000 Hrs @ 105°C, FPCAP, RNS	View
RNS0J151MDN1KX	Nichicon, 150µF 6.3V Aluminum Polymer Capacitor Radial, Can 21mOhm 2000 Hrs @ 105°C, FPCAP, RNS	View
RNS0J821MDN1PH	Nichicon, 820µF 6.3V Aluminum Polymer Capacitor Radial, Can 10mOhm 2000 Hrs @ 105°C, FPCAP, RNS	View
RNS1D220MDS1JT	Nichicon, 22µF 20V Aluminum Polymer Capacitor Radial, Can 49mOhm 2000 Hrs @ 105°C, FPCAP, RNS	View
RNS1C330MDS1JT	Nichicon, 33µF 16V Aluminum Polymer Capacitor Radial, Can 49mOhm 2000 Hrs @ 105°C, FPCAP, RNS	View
RNS1E100MDS1JT	Nichicon, 10µF 25V Aluminum Polymer Capacitor Radial, Can 63mOhm 2000 Hrs @ 105°C, FPCAP, RNS	View
RNS1D470MDN1KX	Nichicon, 47µF 20V Aluminum Polymer Capacitor Radial, Can 28mOhm 2000 Hrs @ 105°C, FPCAP, RNS	View
RNS1E220MDN1KX	Nichicon, 22µF 25V Aluminum Polymer Capacitor Radial, Can 28mOhm 2000 Hrs @ 105°C, FPCAP, RNS	View
RNS1C101MDN1KX	Nichicon, 100µF 16V Aluminum Polymer Capacitor Radial, Can 21mOhm 2000 Hrs @ 105°C, FPCAP, RNS	View
RNS0J331MDN1PH	Nichicon, 330µF 6.3V Aluminum Polymer Capacitor Radial, Can 10mOhm 2000 Hrs @ 105°C, FPCAP, RNS	View
RNS1C330MDS1	Nichicon, 33µF 16V Aluminum Polymer Capacitor Radial, Can 49mOhm 2000 Hrs @ 105°C, FPCAP, RNS	View

RNS1C470MDS1

Part NumberRNS1C470MDS1
