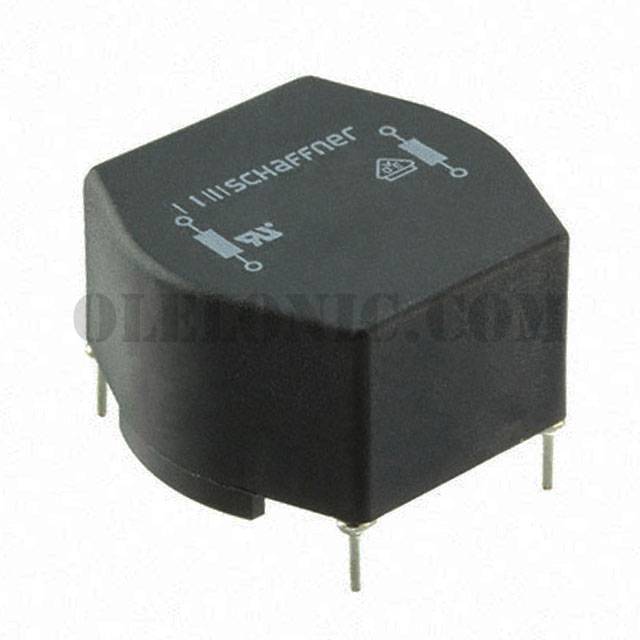

RN143-6-02

Part NumberRN143-6-02

ManufacturerSchaffner EMC Inc.

DescriptionCMC 1.8MH 6A 2LN TH

DatasheetRN Series Datasheet

Package / CaseHorizontal, 4 PC Pin

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description1.8mH @ 1kHz 2 Line Common Mode Choke Through Hole 6A (Typ) DCR 20mOhm (Typ)

To learn about the specification of RN143-6-02, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add RN143-6-02 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of RN143-6-02.
We are offering RN143-6-02 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

RN143-6-02 - Product Attributes

Categories

Filters / Common Mode Chokes

Datasheet

RN Series Datasheet

Standard Package

Manufacturer

Schaffner EMC Inc.

Series

Packaging

Tray

Part Status

Obsolete

Filter Type

Power Line

Number of Lines

Inductance @ Frequency

1.8mH @ 1kHz

Current Rating (Max)

6A (Typ)

DC Resistance (DCR) (Max)

20mOhm (Typ)

Voltage Rating - DC

Voltage Rating - AC

250V

Operating Temperature

-40°C ~ 125°C

Ratings

Approvals

UR, VDE

Features

Mounting Type

Through Hole

Size / Dimension

1.303" L x 1.280" W (33.10mm x 32.50mm)

Height (Max)

0.787" (20.00mm)

Package / Case

Horizontal, 4 PC Pin
