RLF12560T-100M7R5
RLF12560T-100M7R5

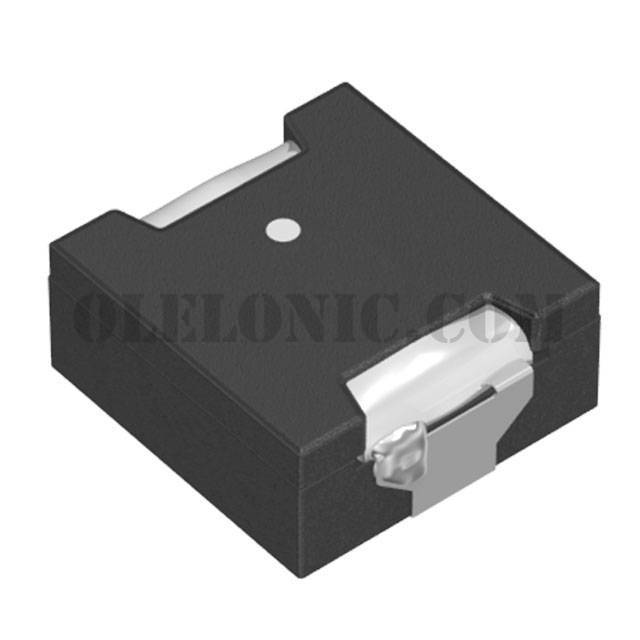

Part Number RLF12560T-100M7R5 Description FIXED IND 10UH 7.8A 12.4 MOHM Package / Case NonstandardUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 10µH Shielded Wirewound Inductor 7.8A 14.88mOhm Max Nonstandard
To learn about the specification of RLF12560T-100M7R5, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add RLF12560T-100M7R5 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of RLF12560T-100M7R5.
We are offering RLF12560T-100M7R5 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
RLF12560T-100M7R5 - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet RLF12560 Series, Commercial Standard Package 1 Manufacturer TDK Corporation Series RLF Packaging Cut Tape (CT) Part Status Active Type Wirewound Material - Core Ferrite Inductance 10µH Tolerance ±20% Current Rating (Amps) 7.8A Current - Saturation 7.5A Shielding Shielded DC Resistance (DCR) 14.88mOhm Max Q @ Freq - Frequency - Self Resonant - Ratings - Operating Temperature -40°C ~ 105°C Inductance Frequency - Test 100kHz Mounting Type Surface Mount Package / Case Nonstandard Supplier Device Package - Size / Dimension 0.504" L x 0.492" W (12.80mm x 12.50mm) Height - Seated (Max) 0.185" (4.70mm)
