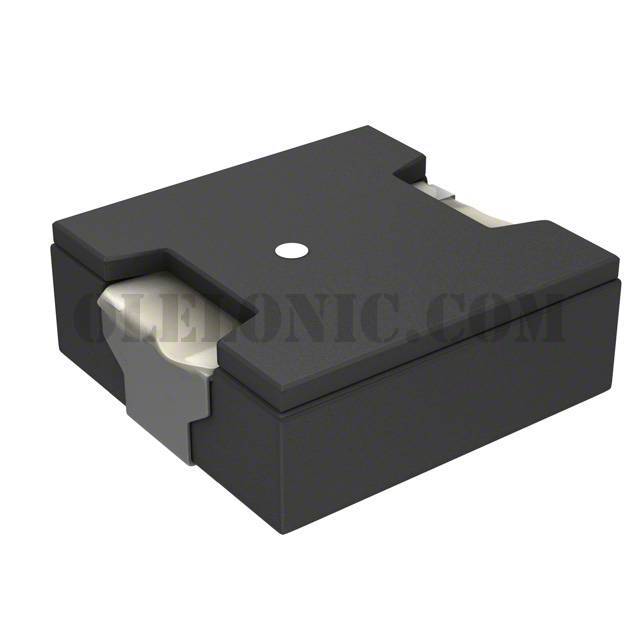

RLF12545T-1R9N100-PF

Part NumberRLF12545T-1R9N100-PF

ManufacturerTDK Corporation

DescriptionFIXED IND 1.9UH 10.5A 3.6 MOHM

DatasheetRLF12545 Series, Commercial

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description1.9µH Shielded Wirewound Inductor 10.5A 4.32mOhm Max Nonstandard

To learn about the specification of RLF12545T-1R9N100-PF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add RLF12545T-1R9N100-PF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of RLF12545T-1R9N100-PF.
We are offering RLF12545T-1R9N100-PF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

RLF12545T-1R9N100-PF - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

RLF12545 Series, Commercial

Standard Package

500

Manufacturer

TDK Corporation

Series

RLF

Packaging

Tape & Reel (TR)

Part Status

Active

Type

Wirewound

Material - Core

Ferrite

Inductance

1.9µH

Tolerance

±30%

Current Rating (Amps)

10.5A

Current - Saturation

13A

Shielding

Shielded

DC Resistance (DCR)

4.32mOhm Max

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-40°C ~ 105°C

Inductance Frequency - Test

100kHz

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

Size / Dimension

0.504" L x 0.492" W (12.80mm x 12.50mm)

Height - Seated (Max)

0.185" (4.70mm)
