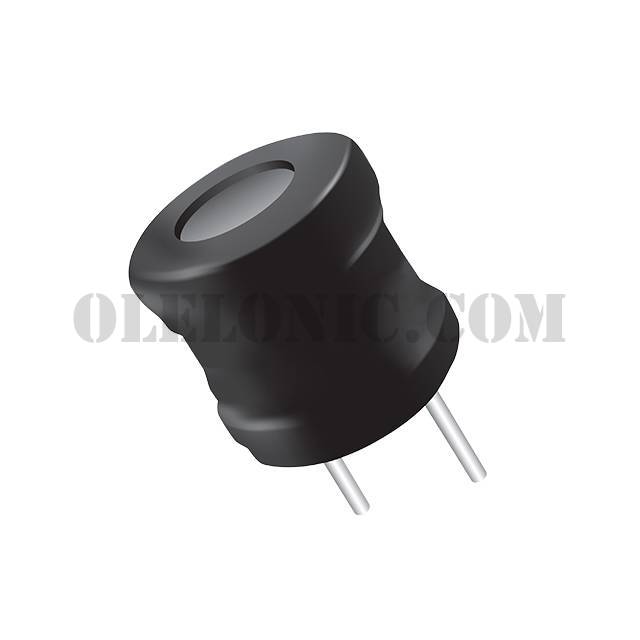

RLB1112V4-222J


RLB1112V4-222J

Part NumberRLB1112V4-222J

Manufacturer

Description

Datasheet

Package / CaseRadial, Vertical Cylinder

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

RLB1112V4-222J - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package1
ManufacturerBourns Inc.
SeriesRLB
PackagingCut Tape (CT)
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance2.2mH
Tolerance±5%
Current Rating (Amps)350mA
Current - Saturation330mA
ShieldingUnshielded
DC Resistance (DCR)3.2Ohm Max
Q @ Freq20 @ 252kHz
Frequency - Self Resonant760kHz
Ratings-
Operating Temperature-40°C ~ 125°C
Inductance Frequency - Test1kHz
Mounting TypeThrough Hole
Package / CaseRadial, Vertical Cylinder
Size / Dimension0.453" Dia (11.50mm)
Height - Seated (Max)0.532" (13.50mm)
Base Part NumberRLB1112
