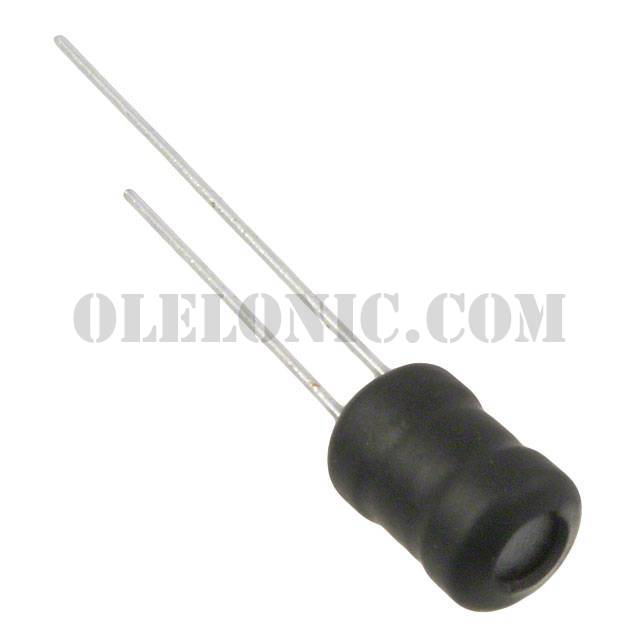

RLB0812-222JL


RLB0812-222JL

Part NumberRLB0812-222JL

Manufacturer

Description

Datasheet

Package / CaseRadial, Vertical Cylinder

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

RLB0812-222JL - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package400
ManufacturerBourns Inc.
SeriesRLB
PackagingBulk
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance2.2mH
Tolerance±5%
Current Rating (Amps)80mA
Current - Saturation-
ShieldingUnshielded
DC Resistance (DCR)8Ohm Max
Q @ Freq60 @ 252kHz
Frequency - Self Resonant750kHz
Ratings-
Operating Temperature-40°C ~ 105°C
Inductance Frequency - Test252kHz
Mounting TypeThrough Hole
Package / CaseRadial, Vertical Cylinder
Supplier Device Package-
Size / Dimension0.264" Dia (6.70mm)
Height - Seated (Max)0.433" (11.00mm)
Base Part NumberRLB0812
