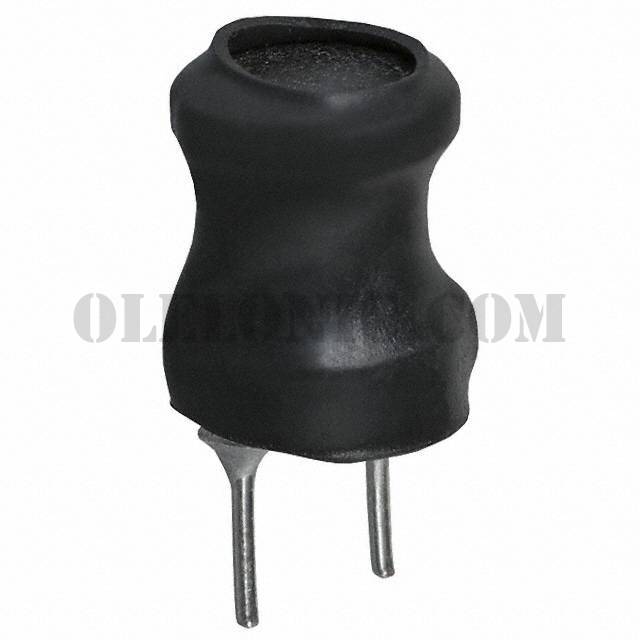

RL822-100K-RC

Part NumberRL822-100K-RC

ManufacturerBourns Inc.

DescriptionFIXED IND 10UH 1.96A 45 MOHM TH

DatasheetRL822 Series

Package / CaseRadial, Vertical Cylinder

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description10µH Unshielded Wirewound Inductor 1.96A 45mOhm Max Radial, Vertical Cylinder

To learn about the specification of RL822-100K-RC, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add RL822-100K-RC with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of RL822-100K-RC.
We are offering RL822-100K-RC for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

RL822-100K-RC - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	RL822 Series
Standard Package	100
Manufacturer	Bourns Inc.
Series	RL822
Packaging	Bulk
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	10µH
Tolerance	±10%
Current Rating (Amps)	1.96A
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	45mOhm Max
Q @ Freq	50 @ 2.52MHz
Frequency - Self Resonant	14MHz
Ratings	-
Operating Temperature	-55°C ~ 105°C
Inductance Frequency - Test	1kHz
Mounting Type	Through Hole
Package / Case	Radial, Vertical Cylinder
Supplier Device Package	-
Size / Dimension	0.335" Dia (8.50mm)
Height - Seated (Max)	0.433" (11.00mm)
Base Part Number	RL822
