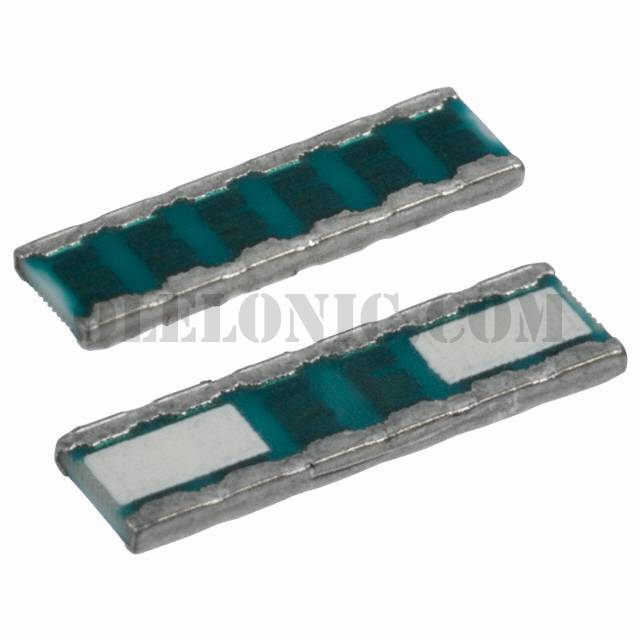

RL7520WS-R22-F

Part NumberRL7520WS-R22-F

ManufacturerSusumu

DescriptionRES 0.22 OHM 2W 3008 WIDE

DatasheetPRL, RL Series Long Side Terminal

Package / CaseWide 3008 (2075 Metric), 0830

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description220 mOhms ±1% 2W Chip Resistor Wide 3008 (2075 Metric), 0830 Current Sense Thin Film

To learn about the specification of RL7520WS-R22-F, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add RL7520WS-R22-F with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of RL7520WS-R22-F.
We are offering RL7520WS-R22-F for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

RL7520WS-R22-F - Product Attributes

Categories	Resistors / Chip Resistor - Surface Mount
Datasheet	PRL, RL Series Long Side Terminal
Standard Package	4000
Manufacturer	Susumu
Series	RL
Packaging	Tape & Reel (TR)
Part Status	Active
Resistance	220 mOhms
Tolerance	±1%
Power (Watts)	2W
Composition	Thin Film
Features	Current Sense
Temperature Coefficient	0/ +200ppm/°C
Operating Temperature	-55°C ~ 125°C
Package / Case	Wide 3008 (2075 Metric), 0830
Supplier Device Package	0830
Size / Dimension	0.079" L x 0.295" W (2.00mm x 7.50mm)
Height - Seated (Max)	0.028" (0.70mm)
Number of Terminations	2
Failure Rate	-
