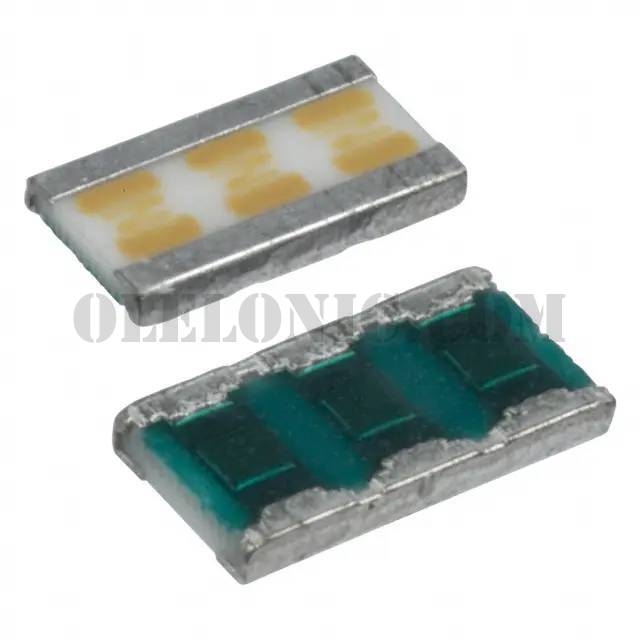

RL3720WS-R10-F

Part NumberRL3720WS-R10-F

ManufacturerSusumu

DescriptionRES 0.1 OHM 1W 1508 WIDE

DatasheetPRL, RL Series Long Side Terminal

Package / CaseWide 1508 (3720 Metric), 0815

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description100 mOhms ±1% 1W Chip Resistor Wide 1508 (3720 Metric), 0815 Current Sense Thin Film

To learn about the specification of RL3720WS-R10-F, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add RL3720WS-R10-F with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of RL3720WS-R10-F.
We are offering RL3720WS-R10-F for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

RL3720WS-R10-F - Product Attributes

Categories	Resistors / Chip Resistor - Surface Mount
Datasheet	PRL, RL Series Long Side Terminal
Standard Package	1
Manufacturer	Susumu
Series	RL
Packaging	Cut Tape (CT)
Part Status	Active
Resistance	100 mOhms
Tolerance	±1%
Power (Watts)	1W
Composition	Thin Film
Features	Current Sense
Temperature Coefficient	0/ +200ppm/°C
Operating Temperature	-55°C ~ 125°C
Package / Case	Wide 1508 (3720 Metric), 0815
Supplier Device Package	0815
Size / Dimension	0.079" L x 0.148" W (2.00mm x 3.75mm)
Height - Seated (Max)	0.028" (0.70mm)
Number of Terminations	2
Failure Rate	-
