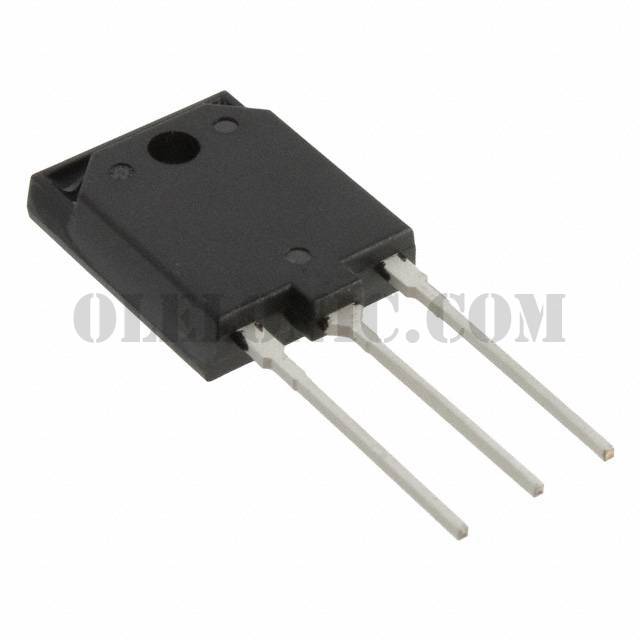

RJP60V0DPM-00#T1

Part NumberRJP60V0DPM-00#T1

ManufacturerRenesas Electronics America

DescriptionIGBT 600V 45A 40W TO-3PFM

DatasheetRJP60V0DPM

Package / CaseTO-3PFM, SC-93-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Trench 600V 45A 40W Through Hole TO-3PFM

To learn about the specification of RJP60V0DPM-00#T1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add RJP60V0DPM-00#T1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of RJP60V0DPM-00#T1.
We are offering RJP60V0DPM-00#T1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

RJP60V0DPM-00#T1 - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Single

Datasheet

RJP60V0DPM

Standard Package

Manufacturer

Renesas Electronics America

Series

Packaging

Tube

Part Status

Active

IGBT Type

Trench

Voltage - Collector Emitter Breakdown (Max)

600V

Current - Collector (Ic) (Max)

45A

Vce(on) (Max) @ Vge, Ic

2.1V @ 15V, 22A

Power - Max

40W

Switching Energy

Input Type

Standard

Gate Charge

75nC

Td (on/off) @ 25°C

45ns/100ns

Test Condition

300V, 22A, 5Ohm, 15V

Operating Temperature

150°C (TJ)

Mounting Type

Through Hole

Package / Case

TO-3PFM, SC-93-3

Supplier Device Package

TO-3PFM
