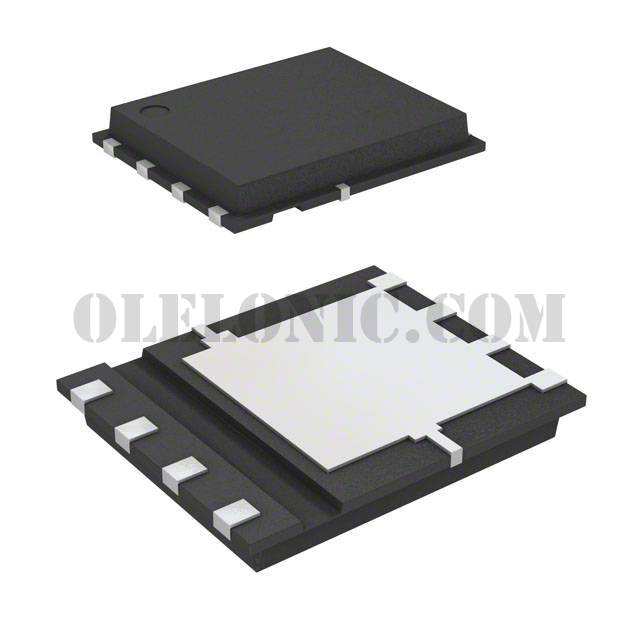

RJK2055DPA-00#J0

Part NumberRJK2055DPA-00#J0

ManufacturerRenesas Electronics America

DescriptionMOSFET N-CH 200V W-PAK

DatasheetRJK2055DPA

Package / Case8-PowerWDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 200V 20A (Ta) 30W (Tc) Surface Mount 8-WPAK

To learn about the specification of RJK2055DPA-00#J0, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add RJK2055DPA-00#J0 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of RJK2055DPA-00#J0.
We are offering RJK2055DPA-00#J0 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

RJK2055DPA-00#J0 - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

RJK2055DPA

Standard Package

Manufacturer

Renesas Electronics America

Series

Packaging

Cut Tape (CT)

Part Status

Discontinued at Digi-Key

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

200V

Current - Continuous Drain (Id) @ 25°C

20A (Ta)

Rds On (Max) @ Id, Vgs

69mOhm @ 10A, 10V

Vgs(th) (Max) @ Id

Gate Charge (Qg) (Max) @ Vgs

38nC @ 10V

Input Capacitance (Ciss) (Max) @ Vds

2400pF @ 25V

FET Feature

Power Dissipation (Max)

30W (Tc)

Operating Temperature

150°C (TJ)

Mounting Type

Surface Mount

Supplier Device Package

8-WPAK

Package / Case

8-PowerWDFN
