RJK1575DPA-00#J5A

Part NumberRJK1575DPA-00#J5A

ManufacturerRenesas Electronics America

DescriptionMOSFET N-CH 150V WPAK

DatasheetRJK1575DPA

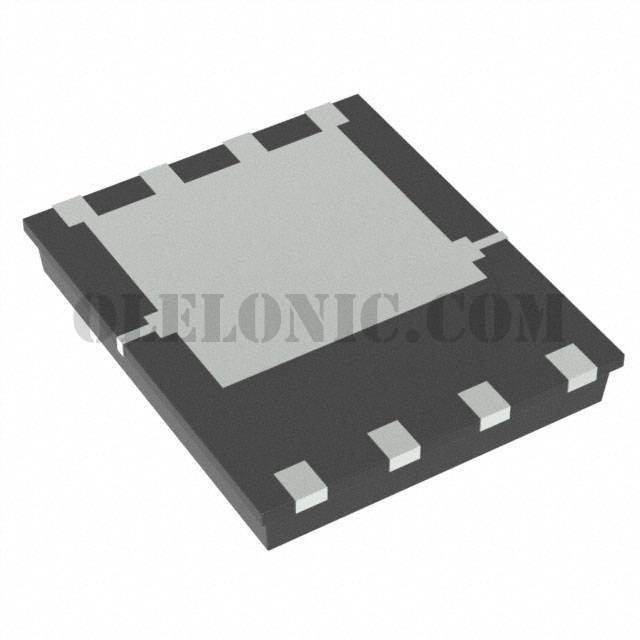

Package / Case8-PowerVDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 150V 25A (Ta) 65W (Tc) Surface Mount WPAK(3F) (5x6)

To learn about the specification of RJK1575DPA-00#J5A, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add RJK1575DPA-00#J5A with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of RJK1575DPA-00#J5A.
We are offering RJK1575DPA-00#J5A for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

RJK1575DPA-00#J5A - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

RJK1575DPA

Standard Package

3000

Manufacturer

Renesas Electronics America

Series

Packaging

Tape & Reel (TR)

Part Status

Active

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

150V

Current - Continuous Drain (Id) @ 25°C

25A (Ta)

Drive Voltage (Max Rds On, Min Rds On)

10V

Rds On (Max) @ Id, Vgs

48mOhm @ 12.5A, 10V

Vgs(th) (Max) @ Id

Gate Charge (Qg) (Max) @ Vgs

37nC @ 10V

Vgs (Max)

±30V

Input Capacitance (Ciss) (Max) @ Vds

2200pF @ 25V

FET Feature

Power Dissipation (Max)

65W (Tc)

Operating Temperature

150°C (TJ)

Mounting Type

Surface Mount

Supplier Device Package

WPAK(3F) (5x6)

Package / Case

8-PowerVDFN
