RJK03M5DNS-00#J5

RJK03M5DNS-00#J5

Part NumberRJK03M5DNS-00#J5

ManufacturerRenesas Electronics America

DescriptionMOSFET N-CH 30V 25A HWSON

DatasheetRJK03M5DNS-00#J5

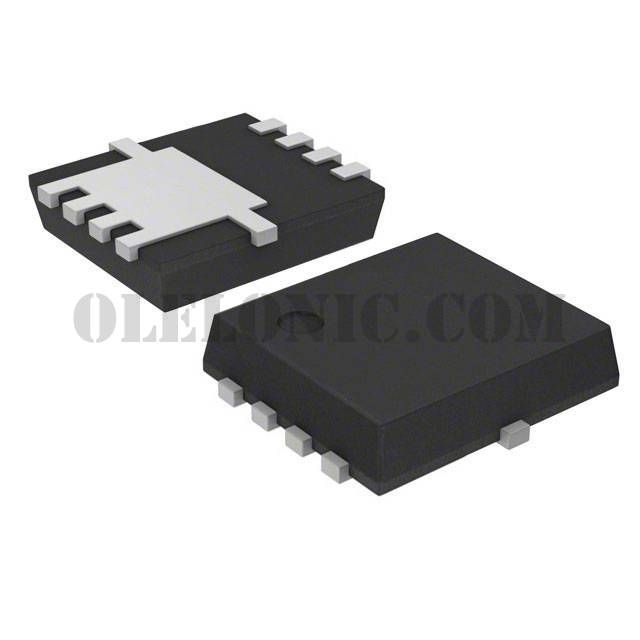

Package / Case8-PowerWDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 30V 25A (Ta) 15W (Tc) Surface Mount 8-HWSON (3.3x3.3)

To learn about the specification of RJK03M5DNS-00#J5, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add RJK03M5DNS-00#J5 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of RJK03M5DNS-00#J5.
We are offering RJK03M5DNS-00#J5 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

RJK03M5DNS-00#J5 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	RJK03M5DNS-00#J5
Standard Package	1
Manufacturer	Renesas Electronics America
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	25A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	6.3mOhm @ 12.5A, 10V
Vgs(th) (Max) @ Id	-
Gate Charge (Qg) (Max) @ Vgs	10.4nC @ 4.5V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1890pF @ 10V
FET Feature	-
Power Dissipation (Max)	15W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-HWSON (3.3x3.3)
Package / Case	8-PowerWDFN
